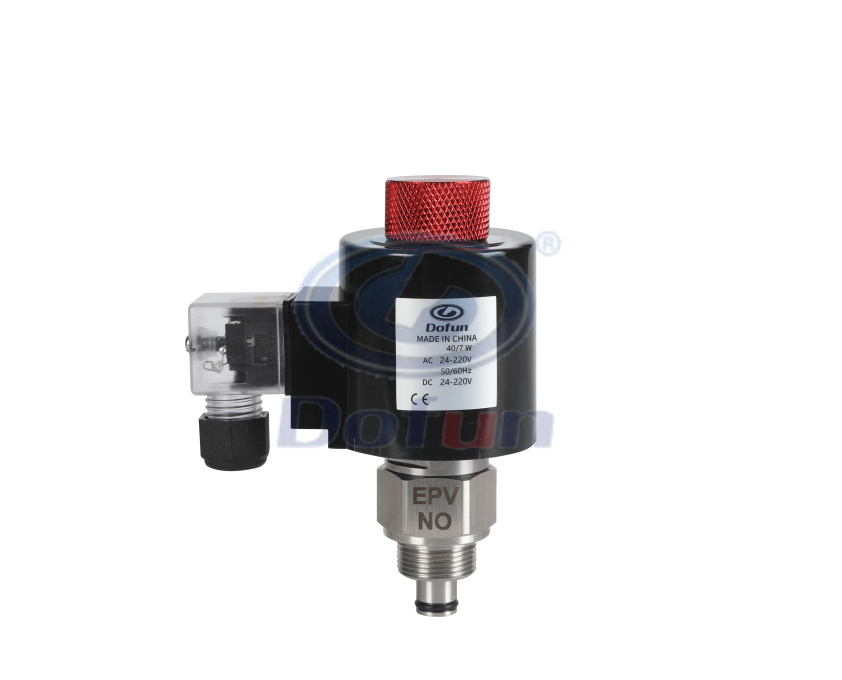

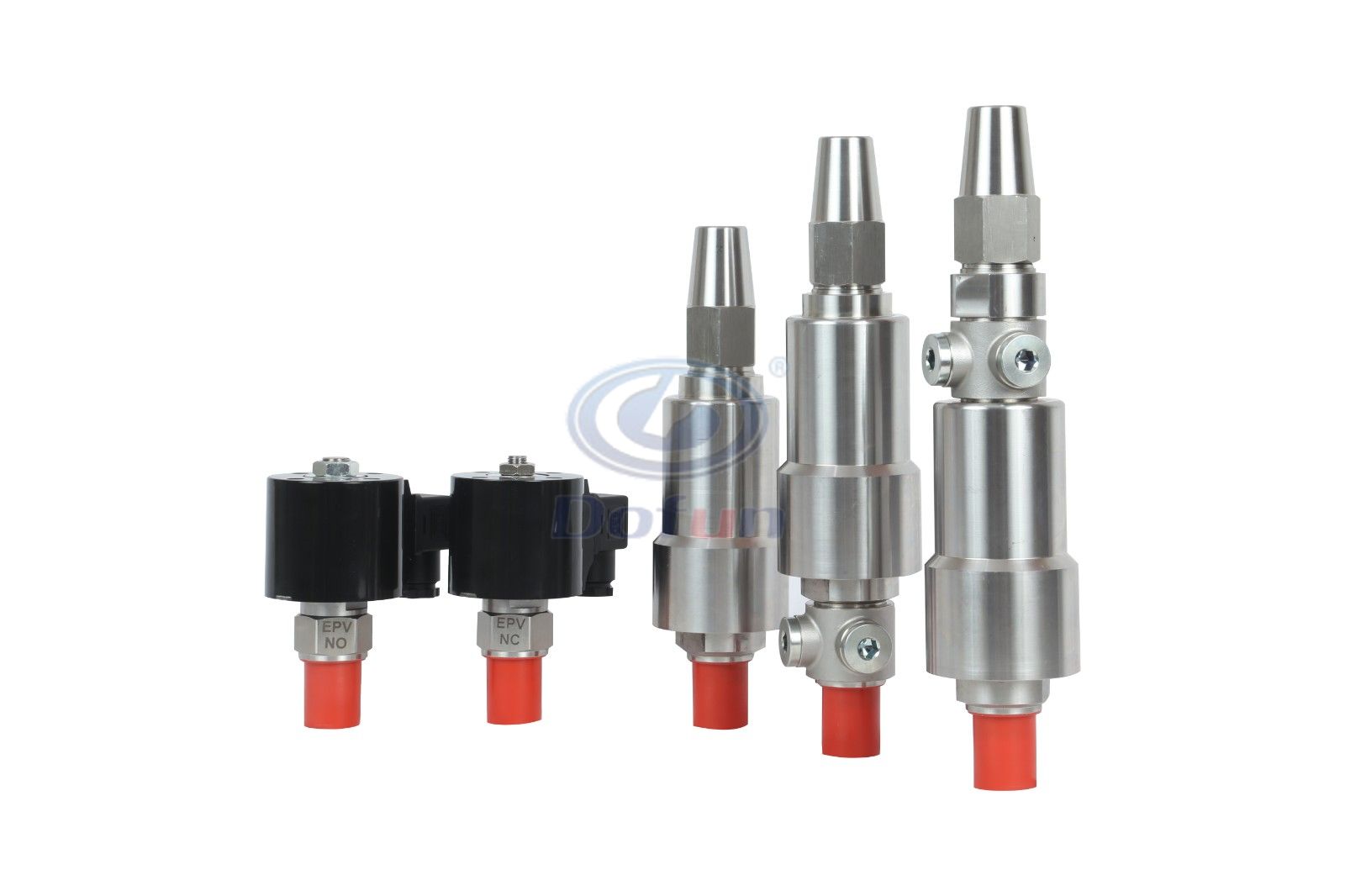

Solenoid pilot valve normally closed EPV-NC(EVM-NO) Industrial automatic control valve

T、技术参数Technical Parameter

◆ 公称压力：6.3MPa

Nominal Pressure:6.3MPa

◆ 适用介质：R12,R22,R502,R134a,R404a,R507,R717 等制冷剂。

Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717andother refrigerants

◆ 适用温度： -46℃~+150℃

Applicable Temperature:46℃M+150℃

2、说明 Instruction

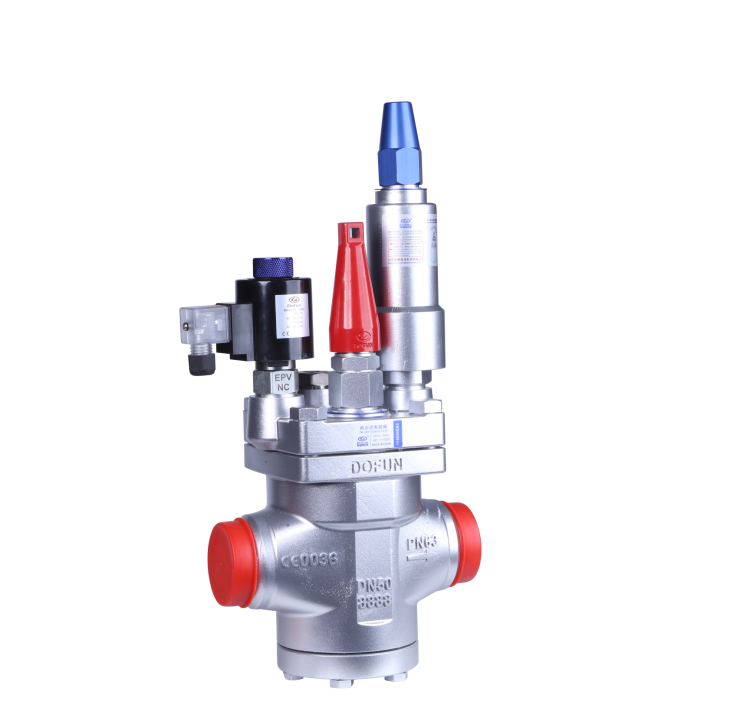

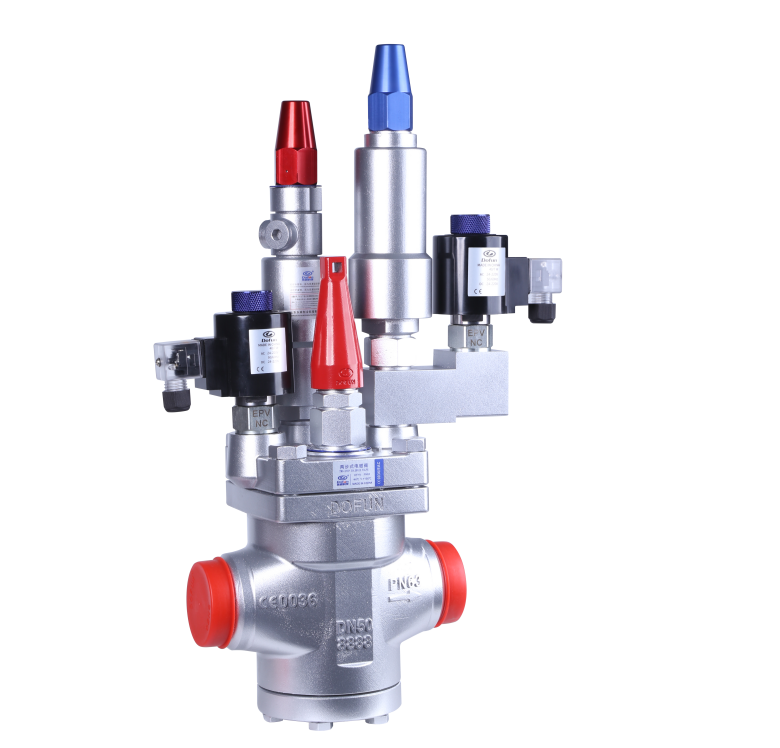

EPV 是一种电磁导阀，用于需要开/关主阀操作时。

EPV isa solenoid pilot valve used when on/off main valve operabon is required.

3、订货 Order Goods

◆ 订货时需指定型号

Please tell us the modelyou want when ordering.

◆ 例：EPV-NO 表示：电磁导阀- 常开

E:q.1EPV'-NC.tMeans: Solenoid Pilot valve- Normally open

型号 Model

KV值

KV Value

温度范围

Temperature Range

公称压力

Nominal Pressure

m3/h

Bar

EPV-NO

0.13

-46/+150

-50.8/+302

EPV-NO-基本尺寸/材料规格 EVP-NO Basic Dimensions/Material Specifications 重量：约0.95KG Weight about 0.95KG	序号 NO.	名称 Name	材质 Material
	1	螺母Nut:M14×1.5	钢Steel
	2	垫圈Washer	钢steel
	3	线圈Coil	/
	4	电枢Armature	不锈钢Stainless Steel
	5	电枢管Armature Tube	不锈钢Stainless Steel
	6	O型圈O Ring	橡胶Rubber
	7	导阀座Pilot Valve Seat	钢Steel
	8	弹簧Spring	不锈钢Stainless Steel
	9	纤维垫圈Fiber Washer	纤维非石棉Non-asbestos Fiber
