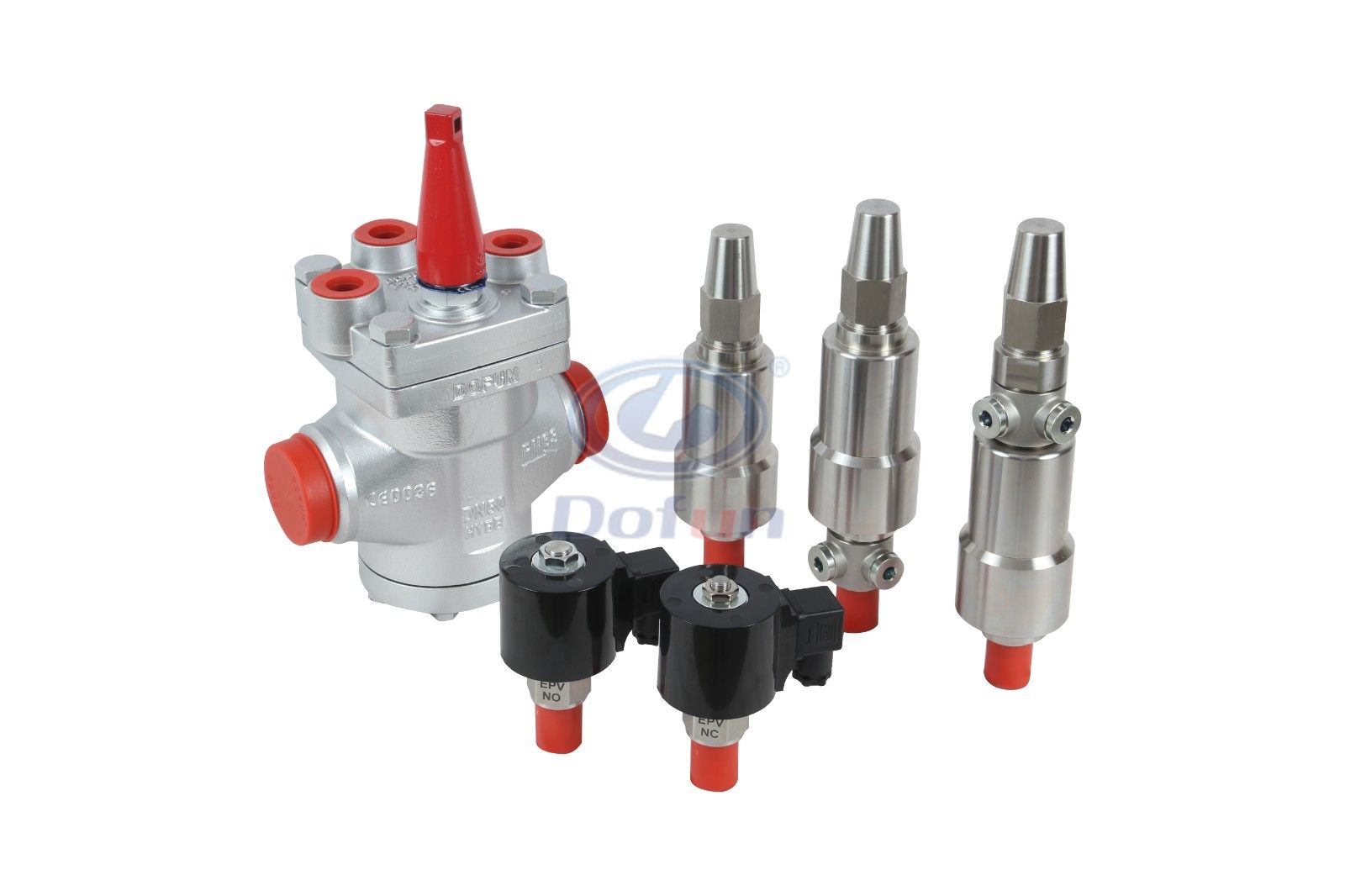

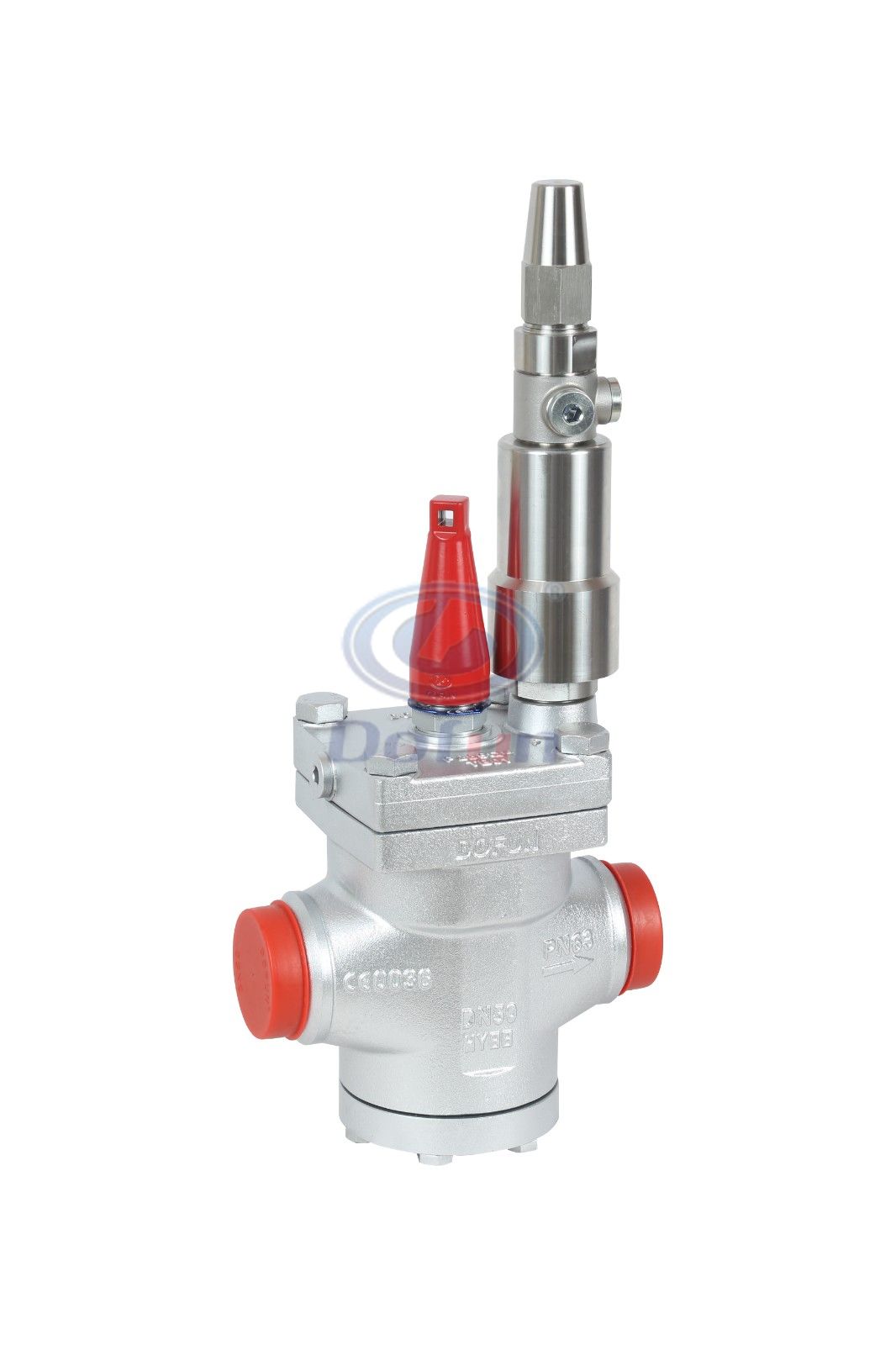

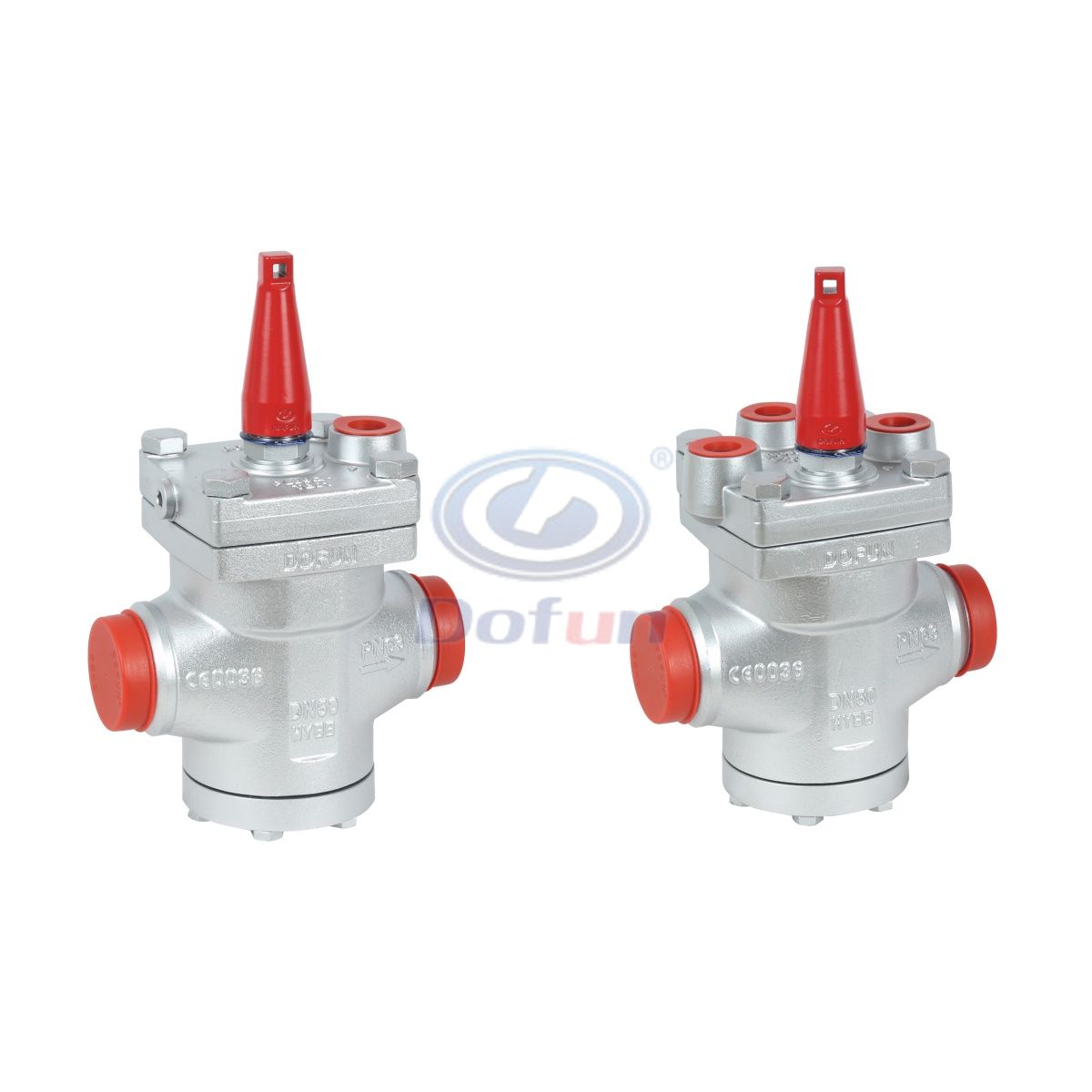

Industrial Refrigeration Valve Ics Pressure Regulating Valve Self-Controlled Valve
Product Information
| Ammonia ,Freon,CO2 System Refrigeration Valve | |||||
| Valve Name | Model | Nominal Diameter | Nominal Pressure | Applicable Temperature | |
| Stop Valve | SVD | DN15 - DN300 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Check Valve | CVD | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Stop Check Valve | SCV | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Regulating Valve | TVD | DN15 - DN125 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Filter | FVD | DN15 - DN150 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Overflow Valve | OFD | DN20,DN25 | Pressure Adjustment Range: 2-6.5bar 3.5-8bar | -50ºC~+150ºC | |
| Liquid Level Switch | LS50 | DN20,DN25 | 2.8MPa | -50ºC~+65ºC | |
| Inlet Pressure Regulating Valve | IPRV | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Inlet Pressure Regulating Valve(Solenoid Forced Close) | IPRV-1C | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Inlet Pressure Regulating Valve(Solenoid Forced Open) | IPRV-1N | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Outlet Pressure Regulating Valve | OPRV | DN25-DN65 | 2.8MPa | -50ºC~+120ºC | |
| Differential Pressure Regulating Valve | DPAV | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Differential Pressure Regulating Valve(Solenoid Forced Open) | DPAV-1N | DN25-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Neck Flange Check Valve | NRVD | DN25-DN150 | 2.5MPa | -50ºC~+150ºC | |
| Solenoid Valve | DEVSC/ DEVS | DN3-DN50 | 2.5MPa | -40ºC~+105ºC | |
| Motor Valve | DFMV | DN20-DN125 | 4.0Mpa,6.3Mpa | -50ºC~+150ºC | |
| Pneumatic Solenoid Valve | DGPV | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Two-Step Open Solenoid Valve(Normally Close) | DGPV-2C | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Two-Step Open Solenoid Valve(Normally Open) | DGPV-2N | DN40-DN125 | 2.8MPa | -50ºC~+120ºC | |
| Valve Station | DFCV | 4.0Mpa | -50ºC~+150ºC | ||
| Small Stop Valve | SVS | DN6,DN10 | 4.0Mpa | -50ºC~+150ºC | |
| Gauge Valve Series | SVA | DN6,DN10 | 4.0Mpa | -50ºC~+150ºC | |
| Motor Ball Valve | DBVD | DN25-DN150 | 4.0Mpa | -50ºC~+150ºC | |
| Cartridge Filter | CFVD | DN15-DN80 | 2.5MPa | -50ºC~+150ºC | |
| Double Stop Valve | DSVD | DSV1: DN25 | 4.0Mpa | -50ºC~+150ºC | |
