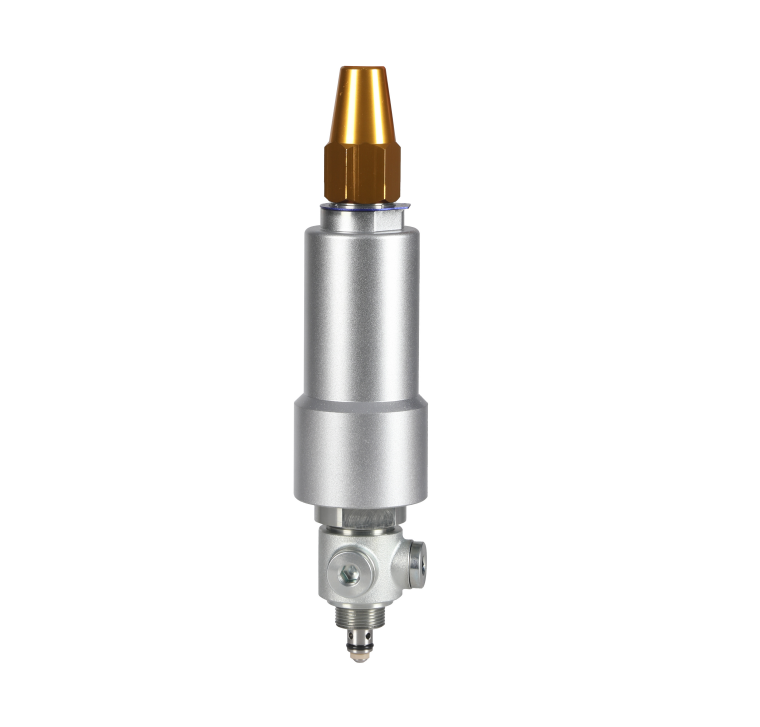

Outlet Pilot Valve OPV Used with Pilot Valve in Industrial Refrigeration System
Nominal Pressure:6.3MPa
Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants
Applicable Temperature:-46℃~+150℃
pressure adjustment rangeL:0-16bar;H:6-35bar

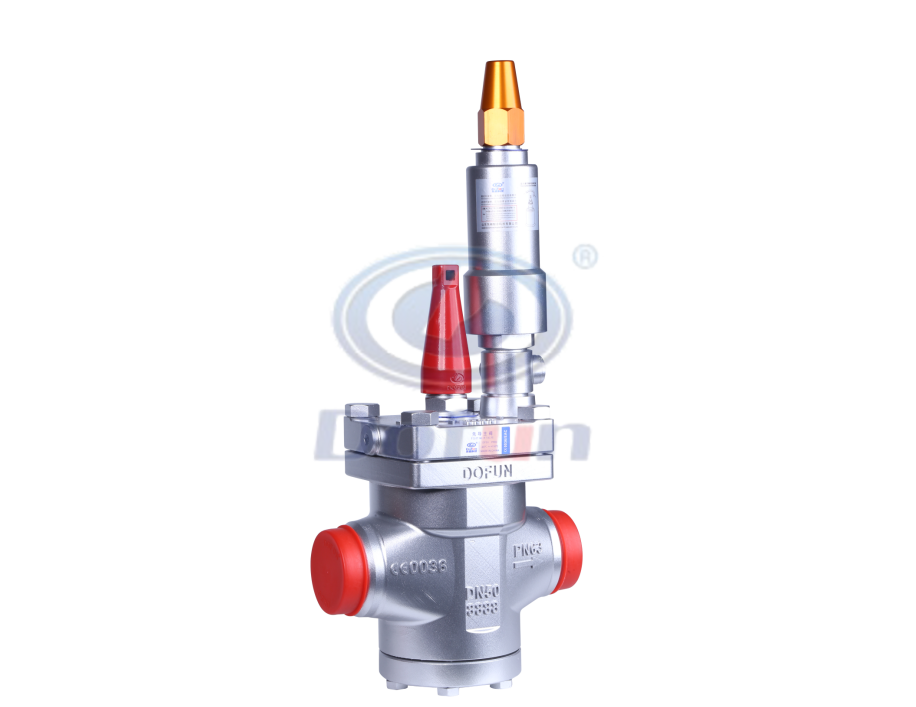

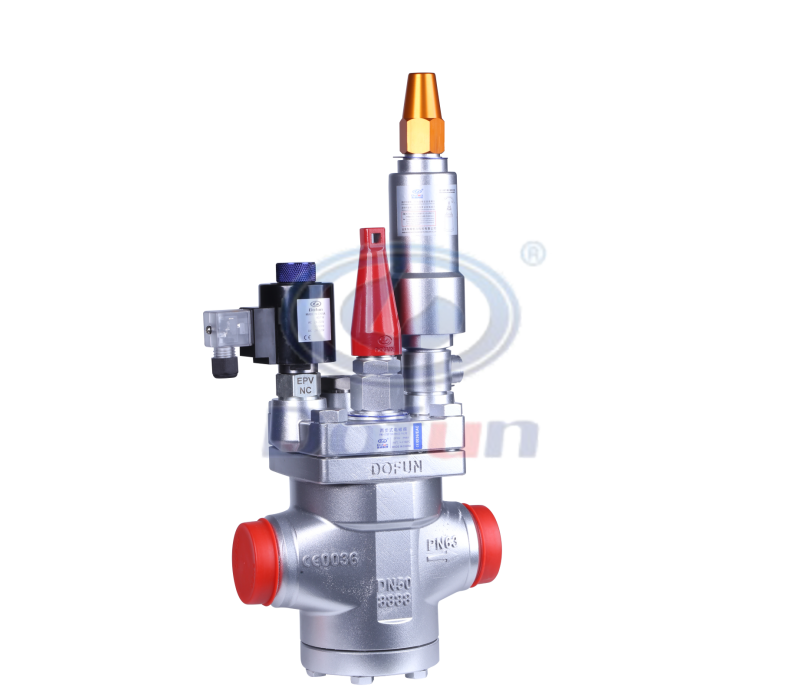

The OPV outlet pressure pilot valve is matched with the piot main valve DFSV series to
keep the outlet pressure behind the valve constant.
3、 Order Goods
Please tell us the model,the setting pressure value,and the pressure adjustment range you wantwhen ordering.
◆ ：OPV-L,4bar
E.g.DPV-L,4bar.It Means:outlet pressure pilot valve;pressure adjustment range:0~16bar;tactory setting pressure:4bar;
I9 the set pressure and pressure adjustment range are not specified,the factory default setting pressure is 7bar,and the pressure adjustment range:0~16bar
型号 Model | KV值 KV Value | 温度范围 Temperature Range | 压力范围 Pressure Range | |
m3/h | C | °F | Bar | |
OPV-L | 0.22 | -46/+150 | -50.8/+302 | 0~16 |
OPV-H | 0.22 | -46/+150 | -50.8/+302 | 6～35 |
