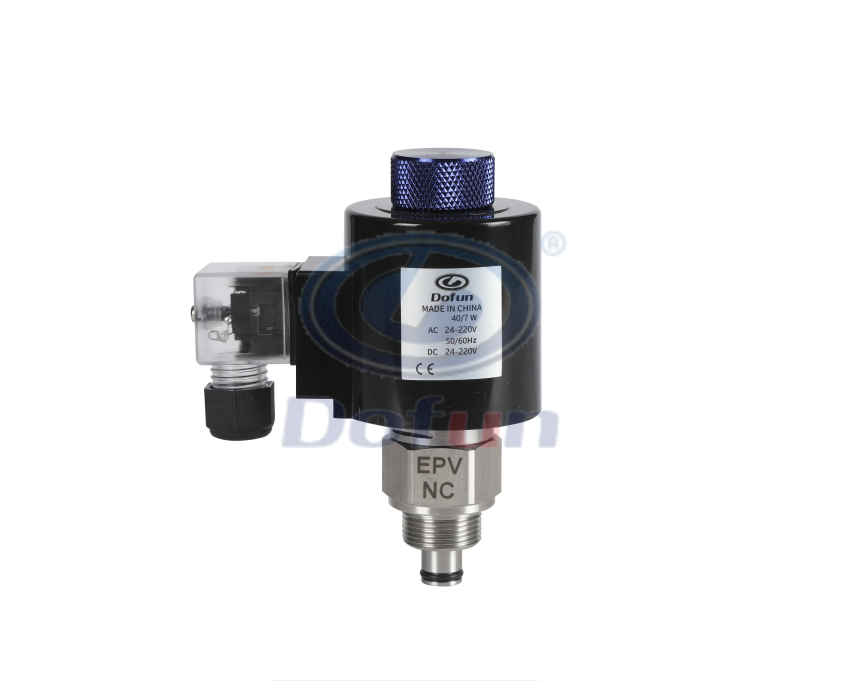

Solenoid pilot valve normally closed EPV-NC(EVM-NC) Industrial automatic control valve
1、技术参数Technical Parameter
◆ 公称压力：6.3 MPa
Nominal Piessure:6.3MPa
◆ 适用介质：R12,R22,R502,R134a,R404a,R507,R717 等制冷剂。
Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717 andother refrigerants
◆ 适用温度： -46℃~+150℃
Applicable Temperature:-46℃+150℃
2、说 明 Instruction

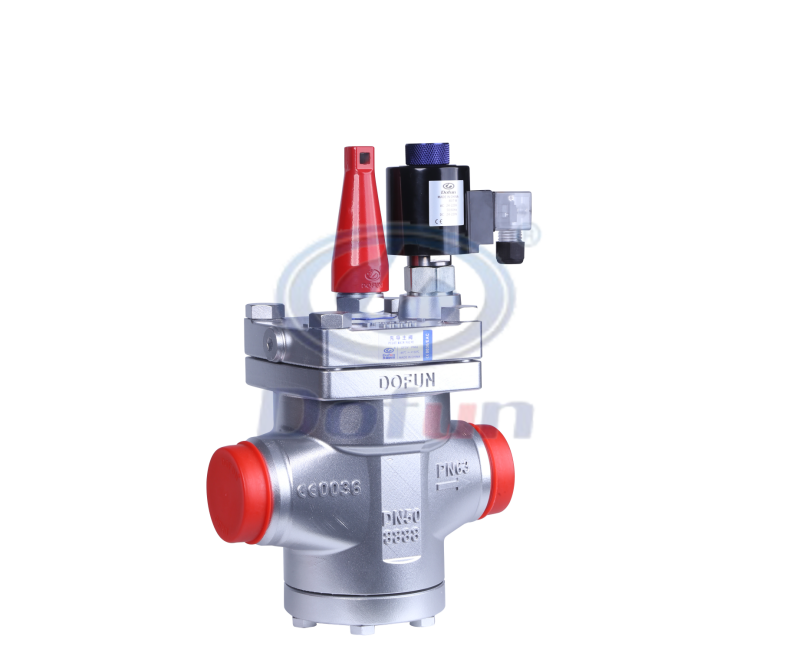

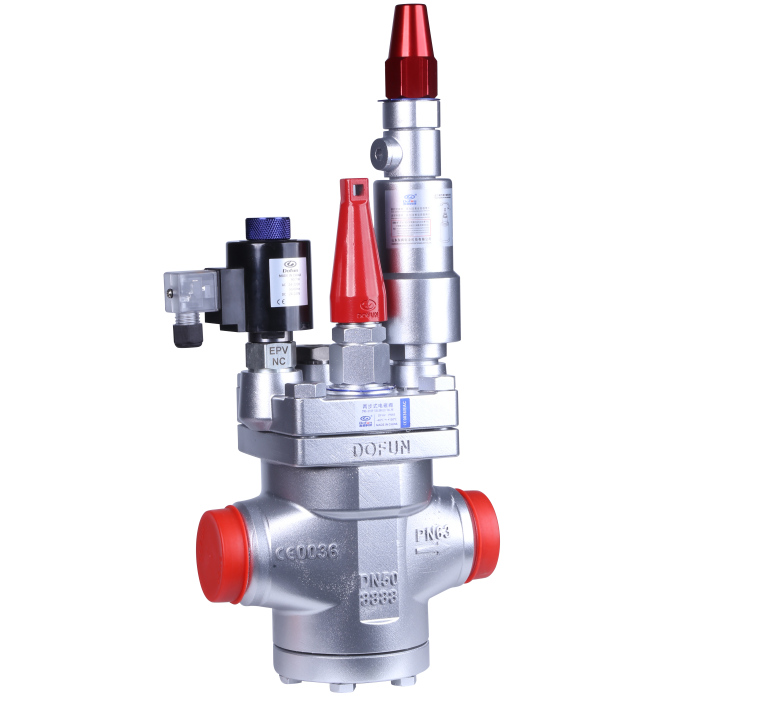

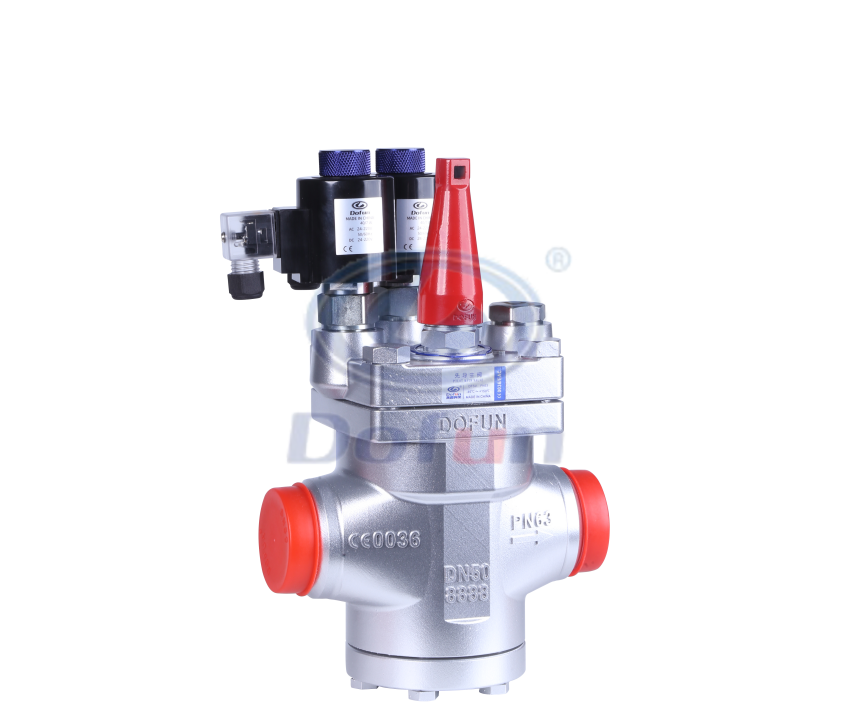

EPV 是一种电磁导阀，用于需要开/关主阀操作时。
EPVis asolenoid pilot valve used when on/off main valve operation is required.
3、订货Order Goods
◆ 订货时需指定型号
Please tell us the model you want when ordering.
◆ 例 ：EPV-NC 表示：电磁导阀- 常闭
Eg.EPV- NC.IMeans: Solenoid Pilot Valve-Normally Ciosed
型号 Model | K V 值 KV Value | 温度范围 Temperature Range | 公称压力 Nominal Pressure | |
m3/h | °C | F | Bar | |
EPV-NC | 0.29 | -46/+150 | -50.8/+302 | 63 |
EPV-NC-基本尺寸!材料规格 EPV-NC-Basic Dimensions/Material Specifications
重量：约0.95KG Weight about 0.95KG | 序号 NO. | 名称 Name | 材质 Material |
1 | 螺母Nut:M10×1.25 | 钢Steel | |
2 | 垫圈Washer | 钢Steel | |
3 | 线圈Coil | / | |
4 | 弹簧Spring | 不锈钢Stainless Steel | |
5 | 电枢Armature | 不锈钢Stainless Steel | |
6 | 电枢管Armature Tube | 不锈钢Stainless Steel | |
7 | O型圈O Ring | 橡胶Rubber | |
8 | 导阀座Pilot Valve Seat | 钢Steel | |
9 | 纤维垫圈Fiber Washer | 纤维非石棉Non-asbestos Fiber |
