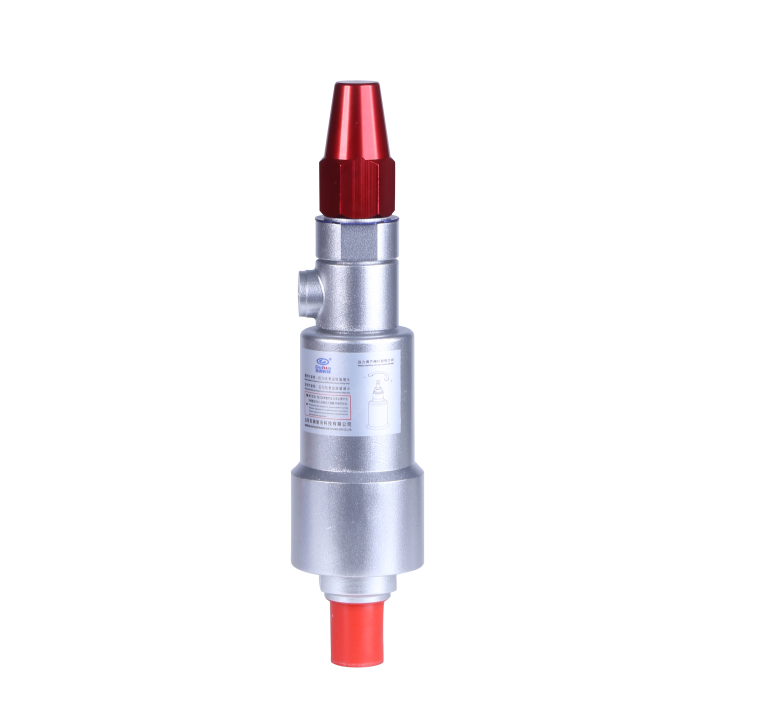

Differential Pressure Pilot Valve DPV (CVPP)Refeigeration Valve

技术参数Technical Parameter

◆ 公称压力： 6.3 MPa

Nominal Pressure:6.3MPa

◆ 适用介质：R12,R22,R502,R134a,R404a,R507,R717    尊制冷剂。

Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717 andother refrigerants

◆ 适用温度： -46℃~+150℃

Applicable   Temperature:-46℃~+150℃

◆ 压力调整范围L:0-16bar;H:6-35bar

pressure    adjustment    rangeL:0-16bar;H:6-35bar

2、说明Instruction

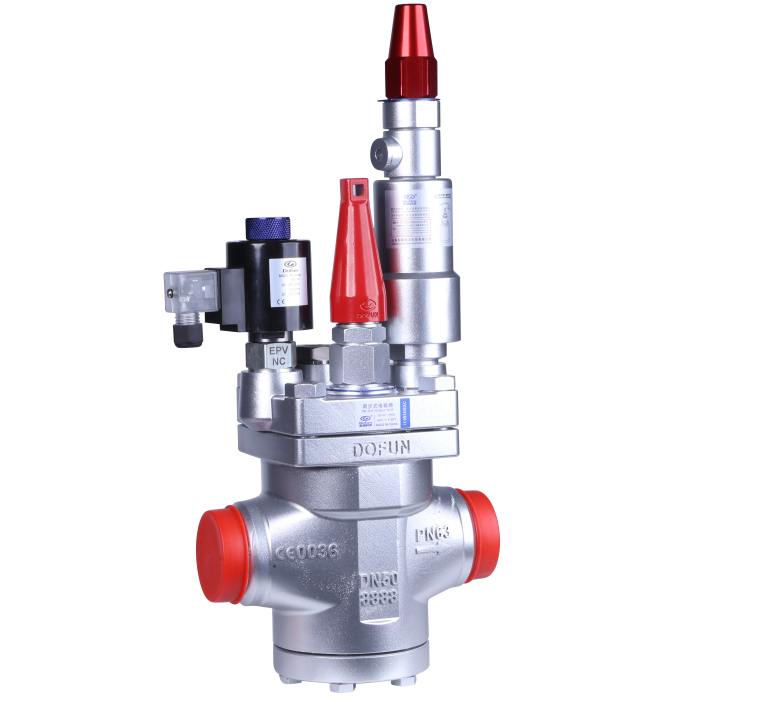

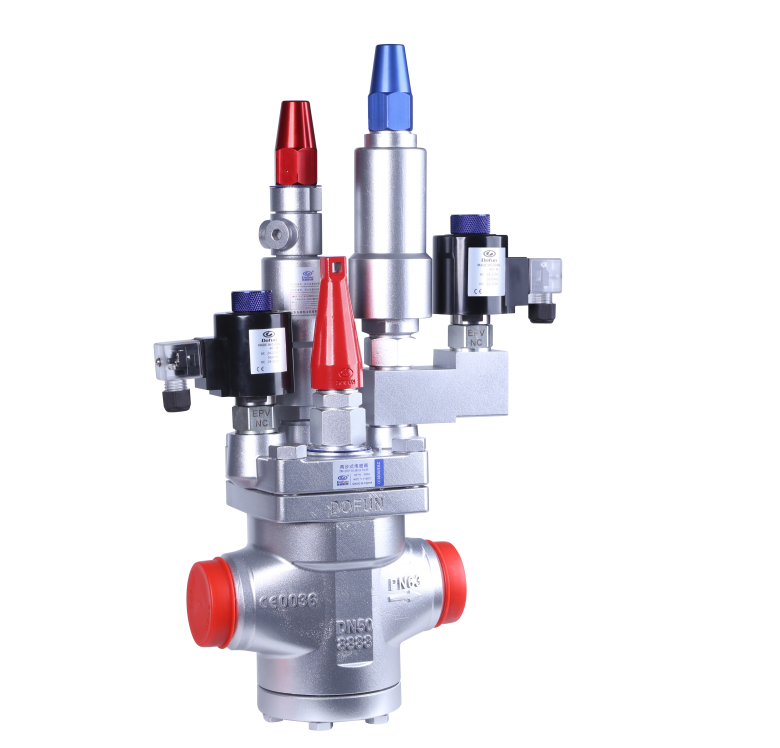

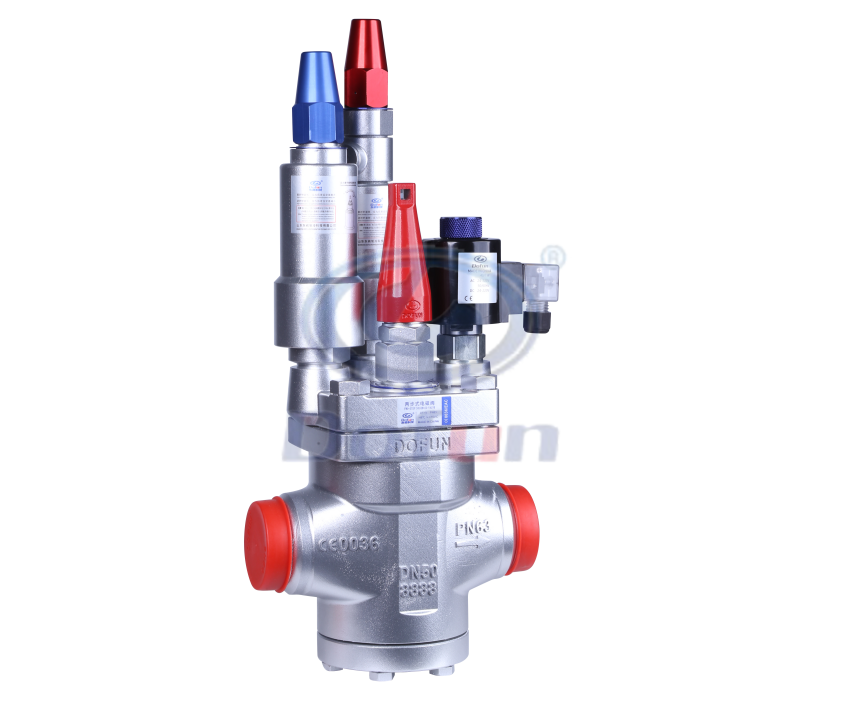

DPV 压差导阀与先导主阀 DFSV 系列匹配，保持阀前后压力差恒定。

The DPV differential pressure pilot valve is matched with the pilot main vakve DFSV series to keep the

pressure difference between the front and back of the valve constant.

3、订货Order Goods

订货时需指定型号、设定压力值、压力调节范围.

Please tell us the model,the setting pressure value,and the pressure adjustment range you want when ordering.

◆ 例 ：DPV,4bar    表示：压差导阀；压力调节范围：0~16bar;    出厂设定压力：4bar

E.g. :DPV,4bar.ItMeans: differential pressure pilot valve; pressure adjustment  range:0-16bar;factory  setting   pressure:4bar

如不指定设定压力、压力调整范围，出厂默认设定压力值为4bar,  压力调整范围：0~16bar

if the seting pressure and pressure adjustment range arenot specfie,the factory defaul stting pressurels abar,and the pressure adjustment range  is  0-16bat.
