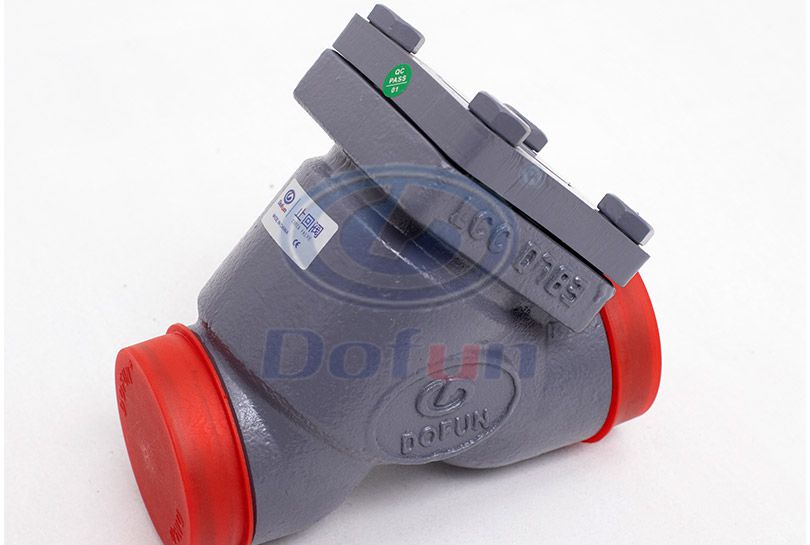

Check Valve Angle Type

Check Valve series products are mainly used in the pipeline which only allows the medium to flow in one direction and prevents the reverse flow. Under the action of the fluid pressure flowing in one direction, the valve disc opens; when the fluid flows in the opposite direction, the valve disc acts on the valve seat by the fluid pressure and the self weight of the valve disc, thus cutting off the flow. It can be used to prevent the back flow of medium on various pipelines of refrigeration system. The products are mainly divided into straight check valve and angle check valve.

Applicable medium: CO2,R12, R22, R502, R134a, R404A, r507, R717, etc


Product Information


 Angle Type


Check Valve PS60 Series:

Technical Parameter

Nominal Diameter: DN15-DN150

Nominal Pressure: 4.0 MPa

Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

Applicable Temperature: -50 ℃ ~ + 150 ℃

Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B

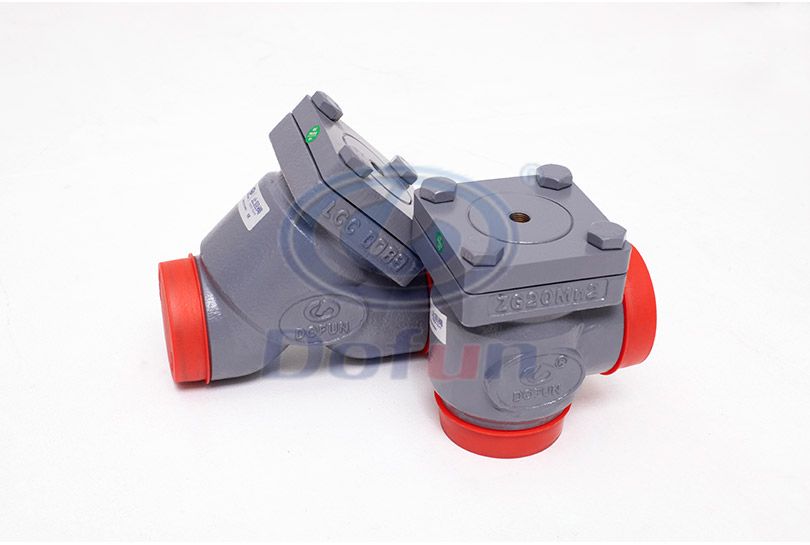

Angel Type Check Valve

Model

Nominal Diameter

(DN)

Sizemm

ΦD-GB

ΦD-DIN

ΦD1

L

H

CVD-A

15

22

21.3

15

45

108

20

27

27

20

45

108

25

32

33.7

25

45

108

32

38

42.4

32

56

136

40

45

48.3

38

56

136

50

57

60.3

49

60

124

65

76

76

62

90

147

80

89

89

76

106

185.5

100

108

114

96

121

248

125

133

139.7

120

133

270

150

159

168

150

146

300



Check Valve PS63 Series:

Technical Parameter

Nominal Diameter: DN15-DN150

Nominal Pressure: 6.3 MPa

Applicable Medium: CO2,R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

Applicable Temperature: -50 ℃ ~ + 150 ℃

Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B

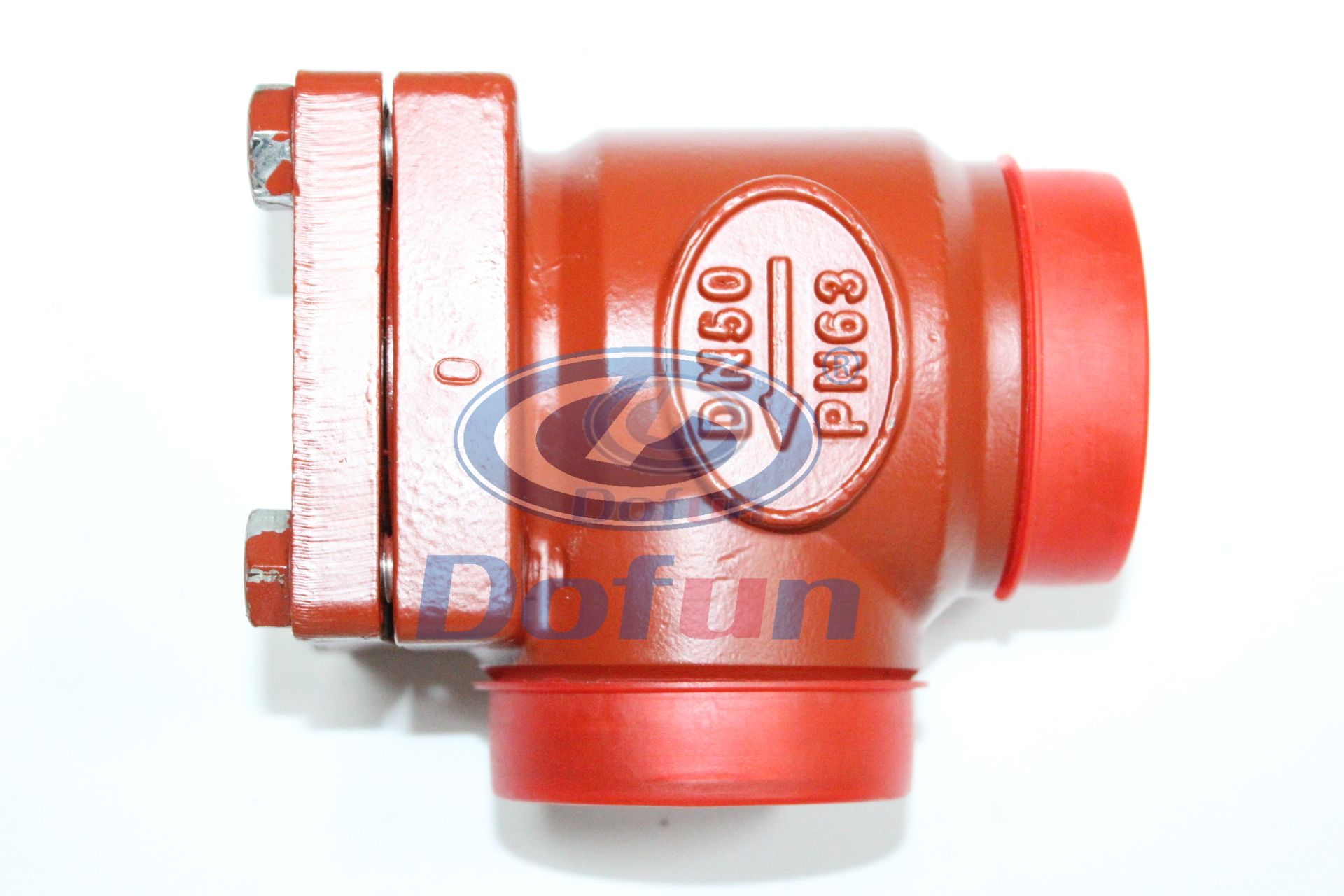

Angel Type PN63 Check Valve

Model

Nominal Diameter

     (DN)

Sizemm

ΦD-GB

ΦD-DIN

ΦD1

L

H

CVD-HA

15

22

21.3

15

45

108

20

27

27

20

45

108

25

32

33.7

25

45

108

32

38

42.4

32

56

136

40

45

48.3

38

56

136

50

57

60.3

49

60

124

65

76

76

62

90

147

80

89

89

76

106

185.5

100

108

114

96

121

248

125

133

139.7

120

133

270

150

159

168

150

146

300
