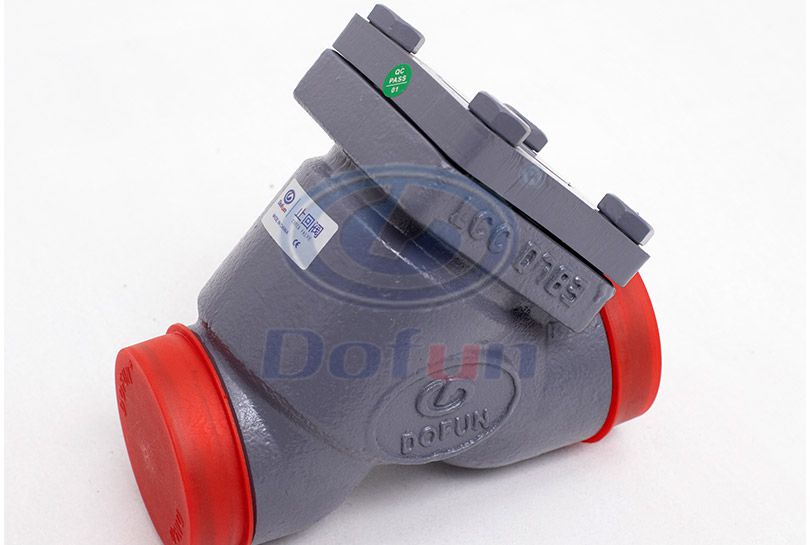

Check Valve Straight Type

Check valve series products are mainly used in the pipeline which only allows the medium to flow in one direction and prevents the reverse flow. Under the action of the fluid pressure flowing in one direction, the valve disc opens; when the fluid flows in the opposite direction, the valve disc acts on the valve seat by the fluid pressure and the self weight of the valve disc, thus cutting off the flow. It can be used to prevent the back flow of medium on various pipelines of refrigeration system. The products are mainly divided into straight check valve and angle check valve.

Applicable medium: CO2,R12, R22, R502, R134a, R404A, r507, R717, etc

Inquire Now

Product Information

Straight Type

Check Valve PS60 Series:

Technical Parameter

Nominal Diameter: DN15-DN150

Nominal Pressure: 4.0 MPa

Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

Applicable Temperature: -50 ℃ ～ + 150 ℃

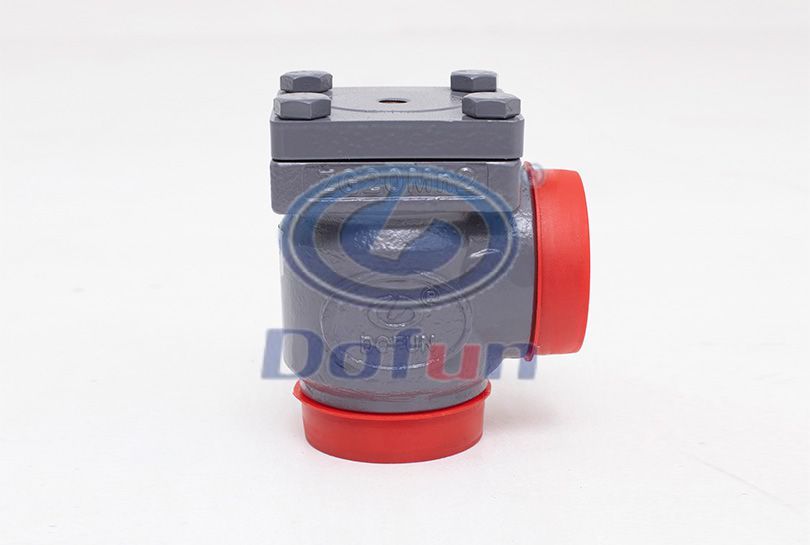

Structure Form: Angle Type Structure code is A ，Straight Type Structure code is B

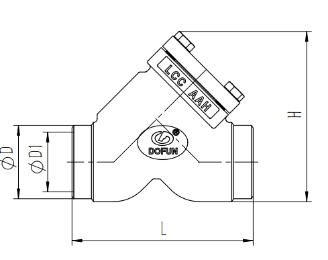

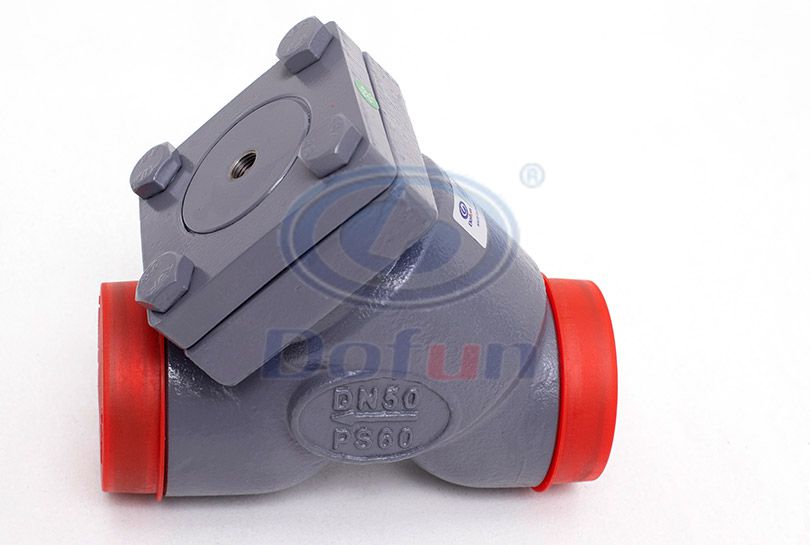

Straight Type PS 60 Check Valve
Type	Nominal Diameter (DN)	Size（mm）
Type	Nominal Diameter (DN)	ΦD-GB	ΦD-DIN	ΦD1	L	H
CVD-S	15	22	21.3	15	120	103
	20	27	27	20	120	103
	25	32	33.7	25	120	103
	32	38	42.4	32	156	131
	40	45	48.3	38	156	131
	50	57	60.3	49	149	140
	65	76	76	62	176	164
	80	89	89	76	254	215
	100	108	114	96	264	261
	125	133	139.7	120	320	316
	150	159	168	150	370	348

Check Valve PS63 Series:

Technical Parameter

Nominal Diameter: DN15-DN150

Nominal Pressure: 6.3 MPa

Applicable Medium: CO2,R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

Applicable Temperature: -50 ℃ ～ + 150 ℃

Structure Form: Angle Type Structure code is A ，Straight Type Structure code is B

Straight Type PN63 Check Valve
Type (DN)	Nominal Diameter	Size（mm）
Type (DN)	Nominal Diameter	ΦD-GB	ΦD-DIN	ΦD1	L	H
CVD-HS	15	22	21.3	15	120	103
	20	27	27	20	120	103
	25	32	33.7	25	120	103
	32	38	42.4	32	156	131
	40	45	48.3	38	156	131
	50	57	60.3	49	149	140
	65	76	76	62	176	164
	80	89	89	76	254	215
	100	108	114	96	264	261
	125	133	139.7	120	320	316
	150	159	168	150	370	348
