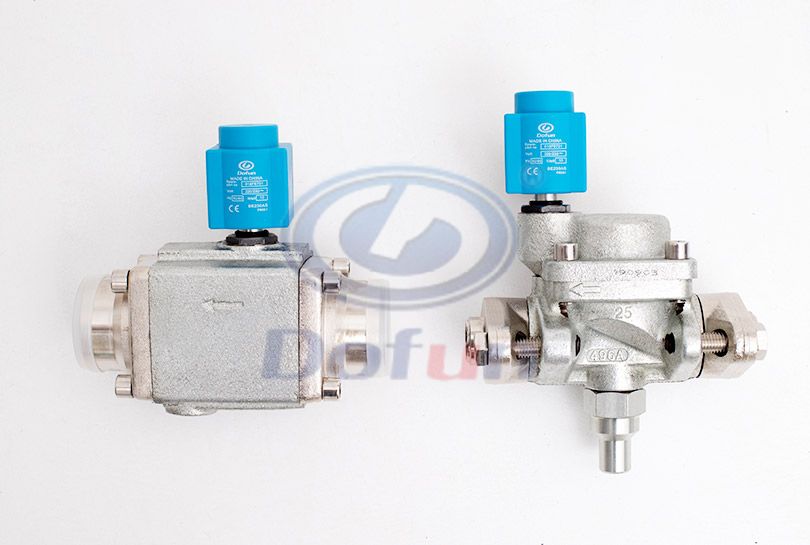

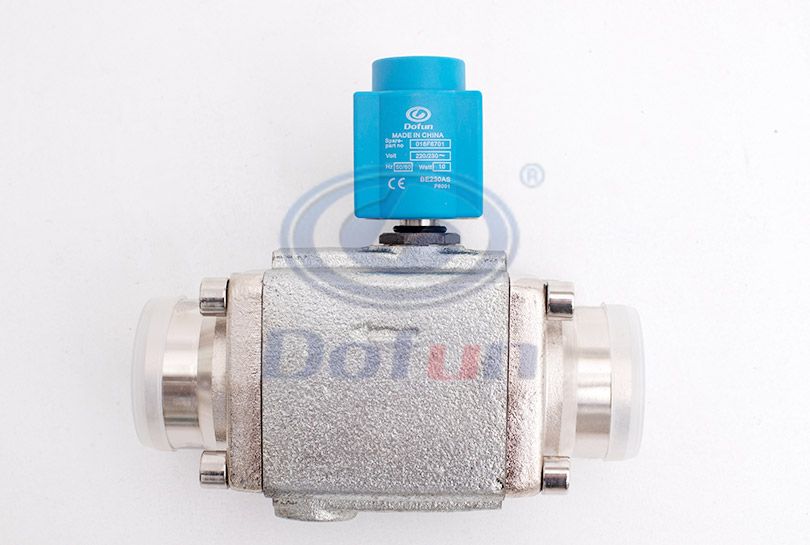

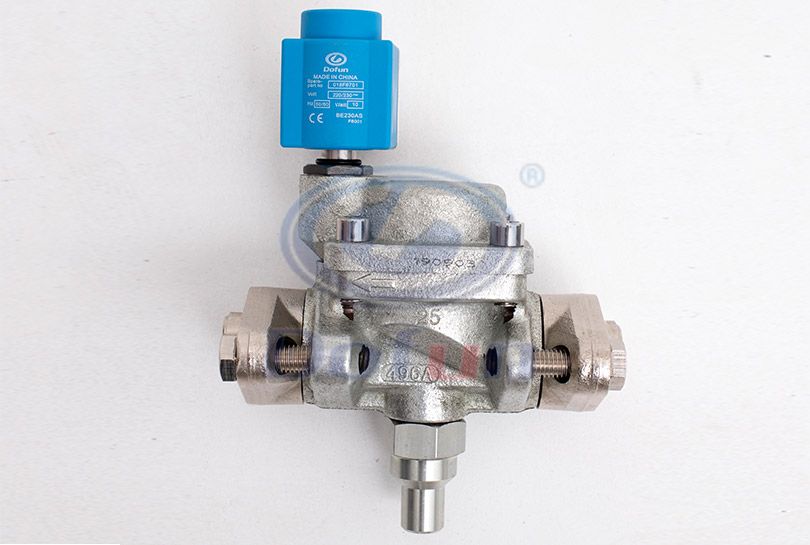

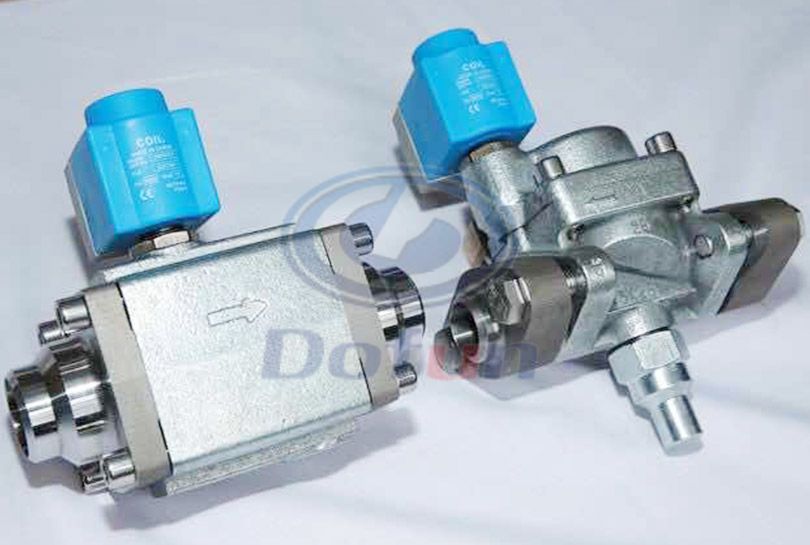

DEVS Series Solenoid Valve (Steel Material)
The DEVS series solenoid valve(Steel valve)is a kind of stop valve which depends on the electromagnetic force to switch automatically. In the industrial refrigeration device, the solenoid valve is often used as the remote control stop valve, the regulation mechanism of the two position regulation system or the safety protection equipment. It can be applied to all kinds of gas, liquid refrigerant and other media.
Product Information
DEVS10 Structure Diagram DEVS15 DEVS20 Structure Diagram
Nominal Diameter: DN3-DN50
Applicable media: R12, R22, R502, R134a, R404A, R507, R717 and other refrigerants.
Applicable temperature: - 40 ℃ ~ + 105 ℃
Model (DN) | H1mm | H2mm | H4mm | Lmm | L1mm | L5 mm | Bmm | B1(max)mm | Weight(KG) | |
10w | 12/20w | |||||||||
DEVS3 | 84 | 127 | 65 | 75 | 85 | 80 | 68 | 1.5 | ||
DEVS10 | 22 | 100 | 81 | 130 | 68 | 75 | 85 | 80 | 68 | 1.7 |
DEVS15 | 100 | 81 | 81 | 100 | 75 | 85 | 80 | 68 | 2.6 | |
DEVS20 | 110 | 77 | 77 | 110 | 75 | 85 | 75 | 68 | 4.7 |
Model (DN) | H1mm | H2mm | H4mm | Lmm | L1mm | L5 mm | Bmm | B1(max)mm | Weight(KG) | |
10w | 12/20w | |||||||||
DEVS25 | 46 | 141 | 78 | 162 | 92 | 75 | 75 | 95 | 68 | 4.6 |
DEVS32 | 47 | 115 | 53 | 175 | 75 | 80 | 80 | 68 | 5 | |
DEVS40 | 47 | 115 | 53 | 175 | 75 | 80 | 80 | 68 | 4.5 | |
DEVS50 | 47 | 115 | 53 | 175 | 75 | 80 | 80 | 68 | 5 |
