Small Stop Valve

Home >> Products >> Small Stop Valve

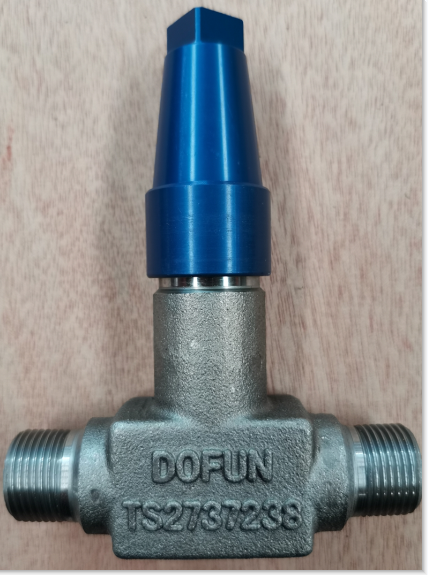

Small Stop Valve Straight Type

Technical Parameter

Nominal Diameter: DN6-DN10

Nominal Pressure: 4MPa,6.3MPa

Applicable Medium: Ammonia,Fluorine and CO2 other refrigerants.




Product Information

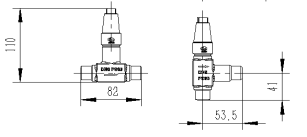

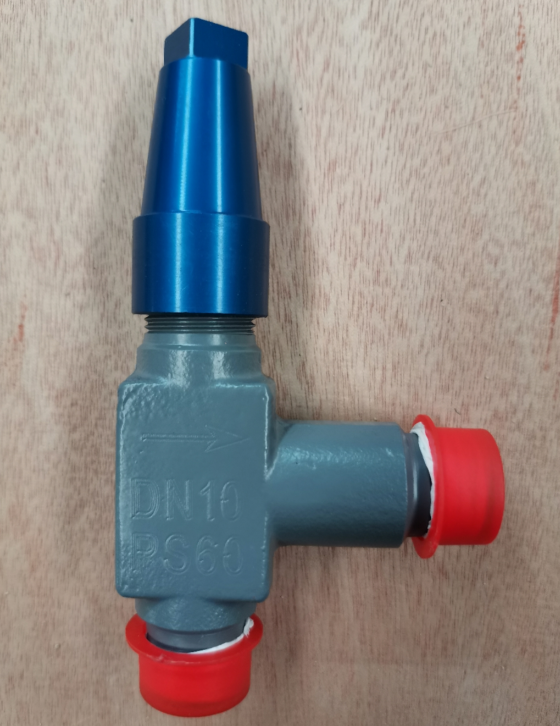

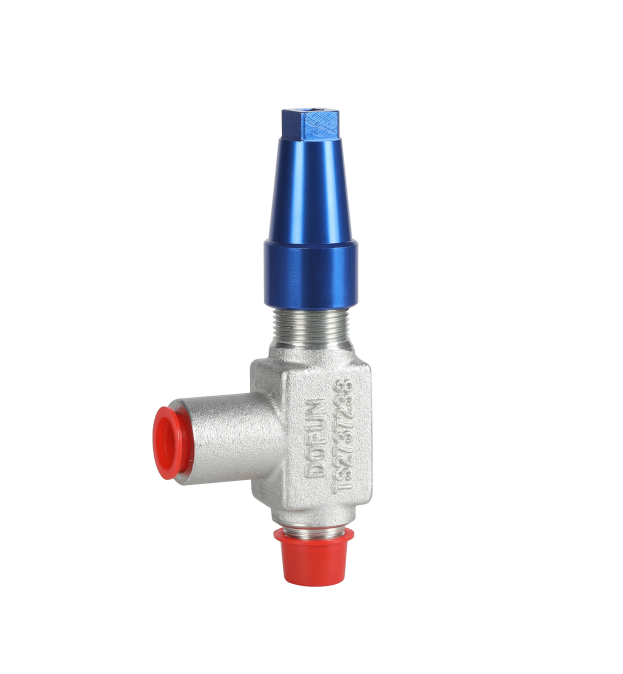

Straight Type                      Angle Type



Thread Specification Table Of Thread Connection Valve

NO.

Inlet Size

Outlet Size

Remark

SVS(A)-01

M20×1.5

M20×1.5

External thread

SVS(A)-02

NPT 1/4

NPT 1/4

The internal and external threads can be combined into different forms as required.

SVS(A)-03

NPT 3/8

NPT 3/8

SVS(A)-04

NPT 1/2

NPT 1/2

SVS(A)-05

Rc 1/4

Rc 1/4

Inlet and outlet are internal thread

55°sealed pipe thread

SVS(A)-06

Rc 3/8

Rc 3/8

SVS(A)-07

Rc 1/2

Rc 1/2

SVS(A)-08

R2   1/4

Rc 1/4

Inlet and outlet are internal thread

55°sealed pipe thread

SVS(A)-09

R2   3/8

Rc 3/8

SVS(A)-10

R2   1/2

Rc 1/2

SVS(A)-11

Rc 1/4

R2   1/4

Inlet and outlet are internal thread

55°sealed pipe thread

SVS(A)-12

Rc 3/8

R2   3/8

SVS(A)-13

Rc 1/2

R2   1/2
