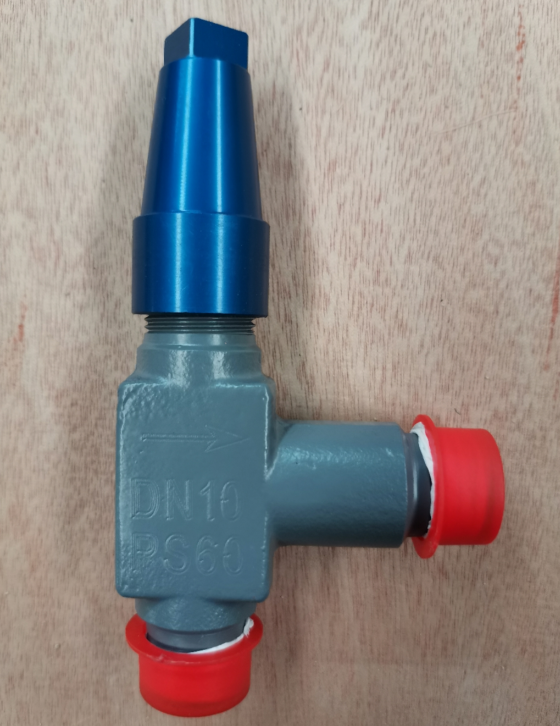

Small Stop Valve Angle Type
Technical Parameter
Nominal Diameter: DN6-DN10
Nominal Pressure: 4MPa,6.3MPa
Applicable Medium: Ammonia,Fluorine and CO2 other refrigerants.
Product Information

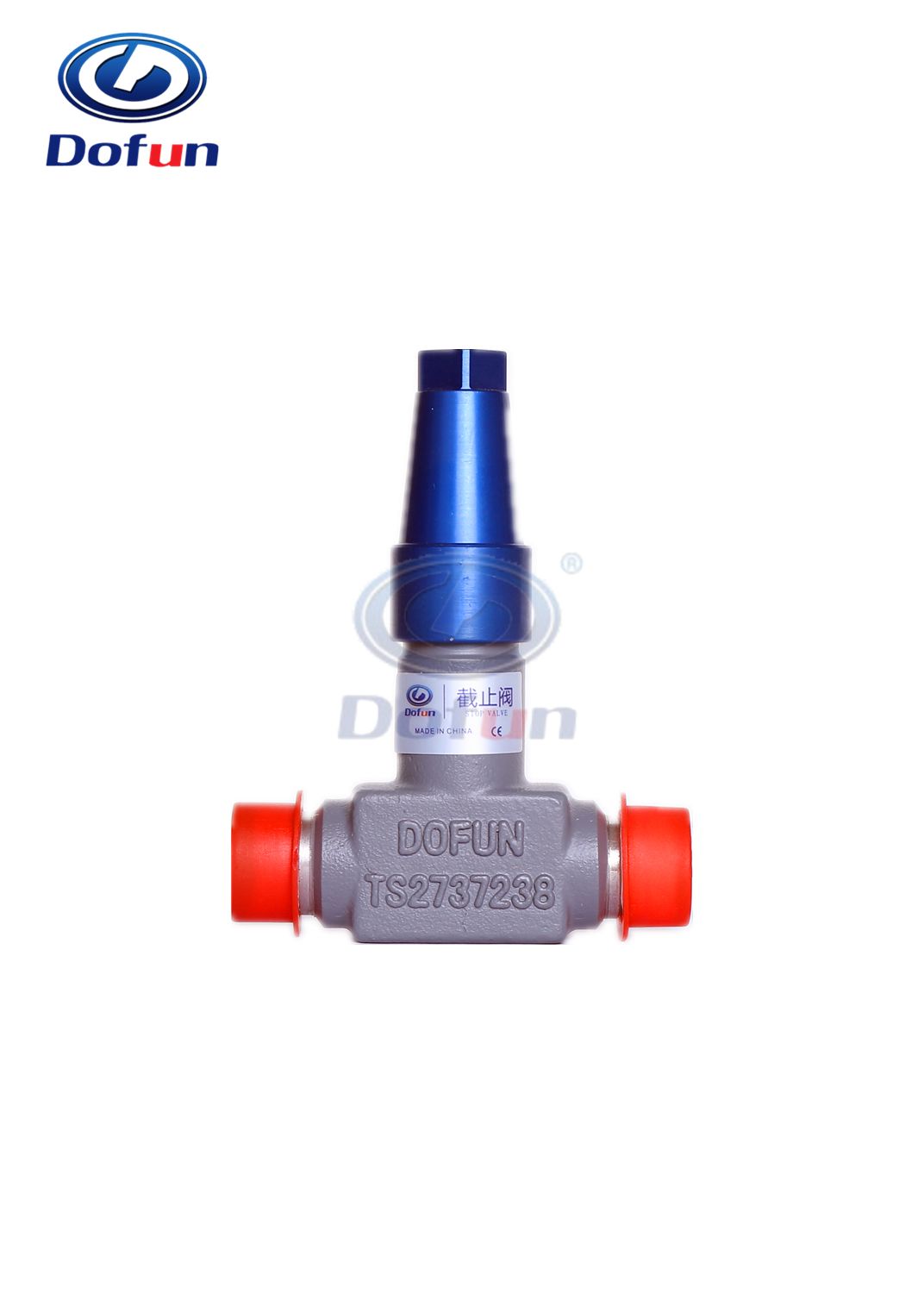

Straight Type Angle Type
Thread Specification Table Of Thread Connection Valve | |||
NO. | Inlet Size | Outlet Size | Remark |
SVS(A)-01 | M20×1.5 | M20×1.5 | External thread |
SVS(A)-02 | NPT 1/4 | NPT 1/4 | The internal and external threads can be combined into different forms as required. |
SVS(A)-03 | NPT 3/8 | NPT 3/8 | |
SVS(A)-04 | NPT 1/2 | NPT 1/2 | |
SVS(A)-05 | Rc 1/4 | Rc 1/4 | Inlet and outlet are internal thread 55°sealed pipe thread |
SVS(A)-06 | Rc 3/8 | Rc 3/8 | |
SVS(A)-07 | Rc 1/2 | Rc 1/2 | |
SVS(A)-08 | R2 1/4 | Rc 1/4 | Inlet and outlet are internal thread 55°sealed pipe thread |
SVS(A)-09 | R2 3/8 | Rc 3/8 | |
SVS(A)-10 | R2 1/2 | Rc 1/2 | |
SVS(A)-11 | Rc 1/4 | R2 1/4 | Inlet and outlet are internal thread 55°sealed pipe thread |
SVS(A)-12 | Rc 3/8 | R2 3/8 | |
SVS(A)-13 | Rc 1/2 | R2 1/2 |
