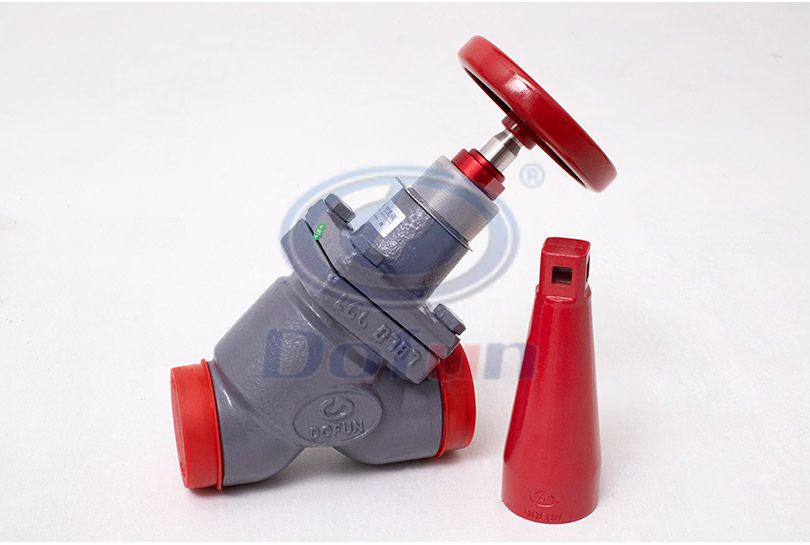

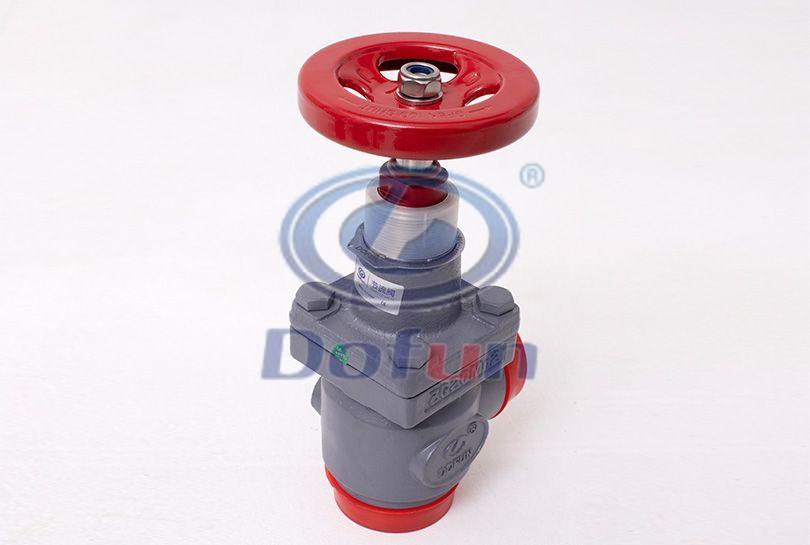

Regulating Valve Straight Type
The opening and closing parts of the stop and control valve are cone streamline type. Rotate the valve rod clockwise to drive the movement of the opening and closing parts to reduce the channel area. On the contrary, increase the channel area clockwise so that the flow and pressure can be adjusted by changing the channel section area through it. Products are mainly divided into straight through throttle valve and angle throttle valve. Applicable medium: CO2R12, R22, R502, R134a, R404A, r507, R717, etc
Product Information

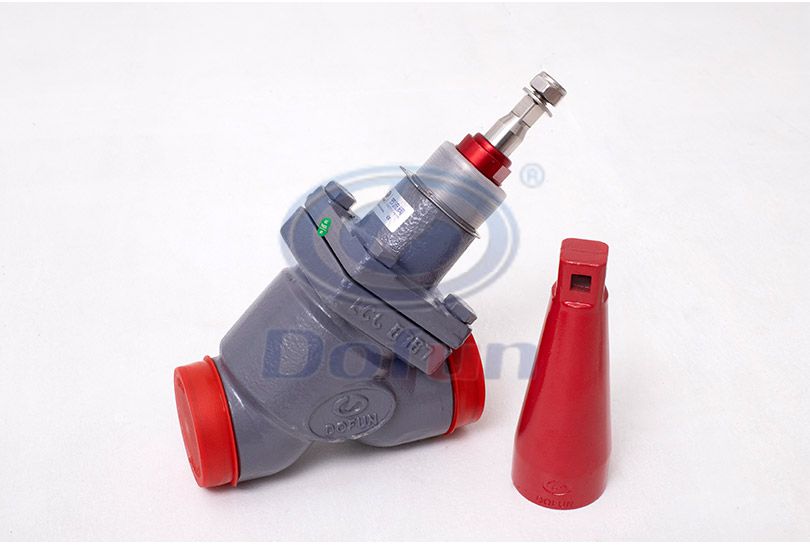

Straight Type
Stop Valve PS60 Series:
Technical Parameter
Nominal Diameter: DN15-DN125
Nominal Pressure: 4.0 MPa
Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
Applicable Temperature: -50 ℃ ~ + 150 ℃
Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B

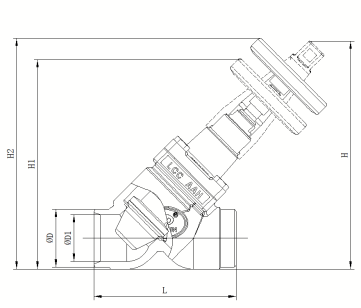

Straight Type Regulating Valve | ||||||||
Type | Nominal Diameter (DN) | Size(mm) | ||||||
ΦD-GB | ΦD-DIN | ΦD1 | L | H | H1 | H2 | ||
TVD-S | 15 | 22 | 21.3 | 15 | 120 | 175 | 166 | 174 |
20 | 27 | 27 | 20 | 120 | 175 | 166 | 174 | |
25 | 32 | 33.7 | 25 | 120 | 175 | 166 | 174 | |
32 | 38 | 42.4 | 32 | 156 | 219 | 206 | 236 | |
40 | 45 | 48.3 | 38 | 156 | 219 | 206 | 236 | |
50 | 57 | 60.3 | 49 | 149 | 242 | 228 | 239 | |
65 | 76 | 76 | 62 | 176 | 277 | 259 | 268 | |
80 | 89 | 89 | 76 | 216 | 323 | 303 | 312 | |
100 | 108 | 114 | 96 | 264 | 380 | 354 | 353 | |
125 | 133 | 139.7 | 120 | 330 | 520 | 478 | 464 |
Stop Valve PS63 Series:
Technical Parameter
Nominal Diameter: DN15-DN125
Nominal Pressure: 4.0 MPa
Applicable Medium: CO2,R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
Applicable Temperature: -50 ℃ ~ + 150 ℃
Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B
Straight Type PN63 Regulating Valve | ||||||||
Type | Nominal Diameter (DN) | Size(mm) | ||||||
ΦD-GB | ΦD-DIN | ΦD1 | L | H | H1 | H2 | ||
TVD-HS | 15 | 22 | 21.3 | 15 | 120 | 175 | 166 | 174 |
20 | 27 | 27 | 20 | 120 | 175 | 166 | 174 | |
25 | 32 | 33.7 | 25 | 120 | 175 | 166 | 174 | |
32 | 38 | 42.4 | 32 | 156 | 219 | 206 | 236 | |
40 | 45 | 48.3 | 38 | 156 | 219 | 206 | 236 | |
50 | 57 | 60.3 | 49 | 149 | 242 | 228 | 239 | |
65 | 76 | 76 | 62 | 176 | 277 | 259 | 268 | |
80 | 89 | 89 | 76 | 216 | 323 | 303 | 312 | |
100 | 108 | 114 | 96 | 264 | 380 | 354 | 353 | |
125 | 133 | 139.7 | 120 | 330 | 520 | 478 | 464 |
