Regulating Valve

Home >> Products >> Regulating Valve

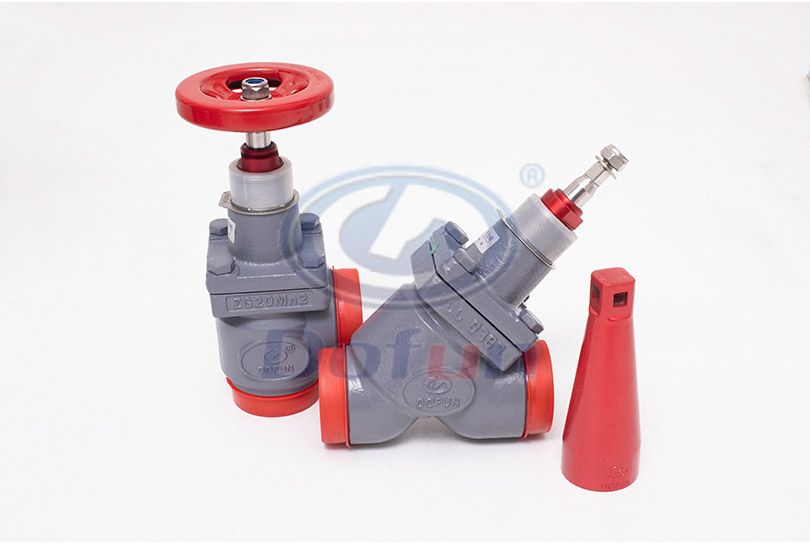

Regulating Valve Angle Type

The opening and closing parts of the stop and control valve are cone streamline type. Rotate the valve rod clockwise to drive the movement of the opening and closing parts to reduce the channel area. On the contrary, increase the channel area clockwise so that the flow and pressure can be adjusted by changing the channel section area through it.  Applicable medium: CO2,R12, R22, R502, R134a, R404A, r507, R717, etc


Product Information


Angel Type

Stop Valve PS60 Series:

Technical Parameter

Nominal Diameter: DN15-DN125

Nominal Pressure: 4.0 MPa

Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

Applicable Temperature: -50 ℃ ~ + 150 ℃

Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B

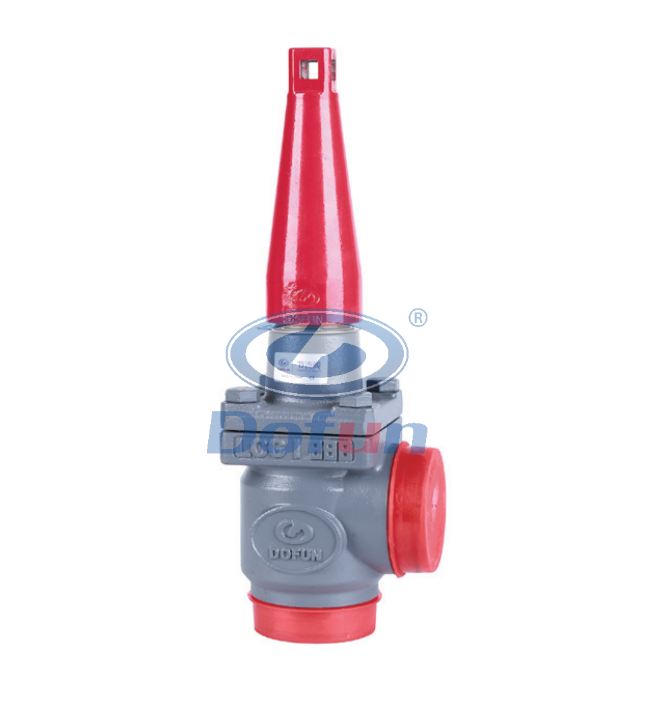

Angel Type Regulating Valve

Type

Nominal Diameter (DN)

Sizemm

ΦD-GB

ΦD-DIN

ΦD1

L

H

H1

H2

TVD-A

15

22

21.3

15

45

203

189

230

20

27

27

20

45

203

189

230

25

32

33.7

25

45

203

189

230

32

38

42.4

32

56

265

247

309

40

45

48.3

38

56

265

247

309

50

57

60.3

49

60

257

237

292

65

76

76

62

90

287

263

324

80

89

89

76

106

328

300

378

100

108

114

96

121

368

331

414

125

133

139.7

120

133

502

442

554



Stop Valve PS63 Series:

Technical Parameter

Nominal Diameter: DN15-DN125

Nominal Pressure: 4.0 MPa

Applicable Medium: CO2,R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

Applicable Temperature: -50 ℃ ~ + 150 ℃

Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B

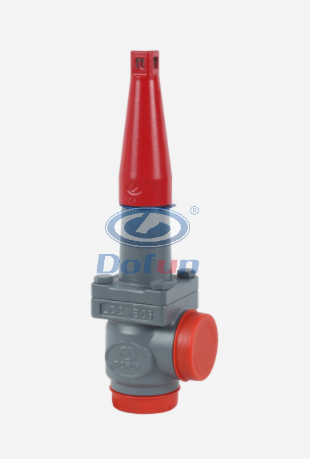

Angel Type PN63 Regulating Valve

Type

Nominal Diameter

(DN)

Sizemm

ΦD-GB

ΦD-DIN

ΦD1

L

H

H1

H2

TVD-HA

15

22

21.3

15

45

203

189

230

20

27

27

20

45

203

189

230

25

32

33.7

25

45

203

189

230

32

38

42.4

32

56

265

247

309

40

45

48.3

38

56

265

247

309

50

57

60.3

49

60

257

237

292

65

76

76

62

90

287

263

324

80

89

89

76

106

328

300

378

100

108

114

96

121

368

331

414

125

133

139.7

120

133

502

442

554
