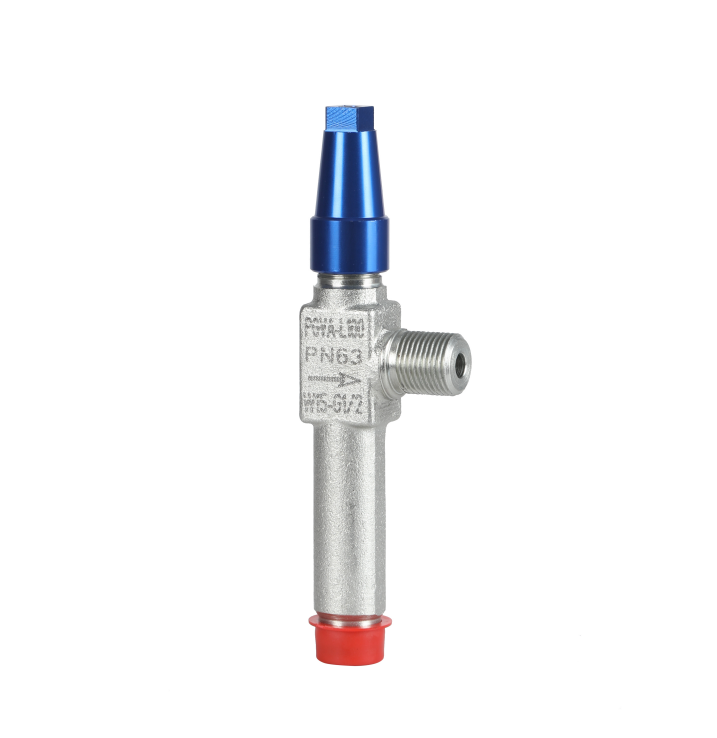

Long Neck Angle Pressure Gauge Valve PGVA-L Type
1、技术参数 Technical Parameters
◆ 公称通径： DN6-DN10
Nominal Diameter:DN6-DN10
◆ 公称压力：6.3 Mpa
Nominal Pressure:6.3Mpa
◆ 适用介质： R12,R22,R502,R134a,R404a,R507R717R744 等 制冷剂。
Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717,R744 and other refrigerants.
◆ 适用温度： -46℃~+150℃
Applicable Temperature;-46℃-+150℃
2、订货 Order Goods
◆ 订货需指定型号、结构形式、公称压力，连接方式
Please specify model,structure, nomina pressure,connection method
◆ 例如：PGVA10-L100-W15-G1/2
For example:PGVA10-L100-W15-G1/2
表示：型号 PGVA10-L100, 进口对焊结构，出口螺纹G1/2. 默 认进口对焊结构，出口外螺纹G1/2. 其它结构需说明定制
It means:Mode PGVA10-L100,inlet butt-welded structure,outlet
thread G1/2.Default is inlet butt-welded structure,outlet external
thread G1/2.Other structures require customization.
出口连接方式Outlet connection method | ||
|
|
|
外螺纹G1/2 External thread G1/2 55°非内螺纹密封管螺纹 55°Non-internal thread Sealing pipe thread | 内螺纹NPT1/4 Internal thread NPT1/4 60°密封锥形管螺纹 60°Sealing tapered pipe threads |
J10对焊接头 J10 Butt welding joint |
进口连接方式Inlet connection method |
| L(mm)50PGVA-L50100PGVA-L100125PGVA-L125150PGVA-L150订货：型号+进口+出口 Order:Model+Inlet+Outlet
| |
| |||
对焊Butt welding D=21.3mm,T=3.1mm,L=14mm |
