Gauge Valve Series

Home >> Products >> Gauge Valve Series

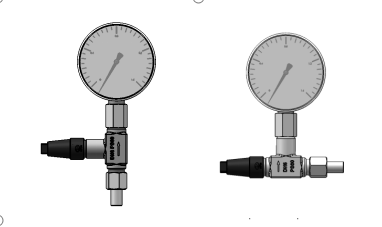

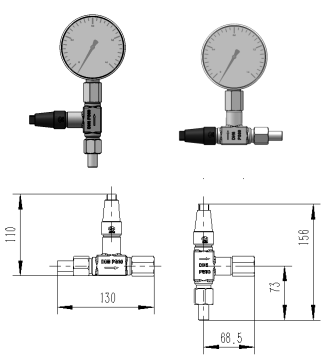

Gauge Valve Angle Type and Straight Type

Technical Parameter

Model:PGV

Nominal Diameter: DN6-DN10

Nominal Pressure: 4MPa,6.3Mpa

Applicable Medium: Ammonia,Fluorine and CO2 other refrigerants.

Applicable Temperature: -50 ℃ ~ + 120 ℃

Product Information



Thread Specification Table Of Thread Connection Pressure Gauge Valve

NO.

Inlet Size

Outlet Size

PGV(A)-01

M20×1.5

M20×1.5

PGV(A)-02

NPT 1/4

M20×1.5

PGV(A)-03

NPT 3/8

M20×1.5

PGV(A)-04

NPT 1/2

M20×1.5

PGV(A)-05

R2   1/4

M20×1.5

PGV(A)-06

R2   3/8

M20×1.5

PGV(A)-07

R2   1/2

M20×1.5
