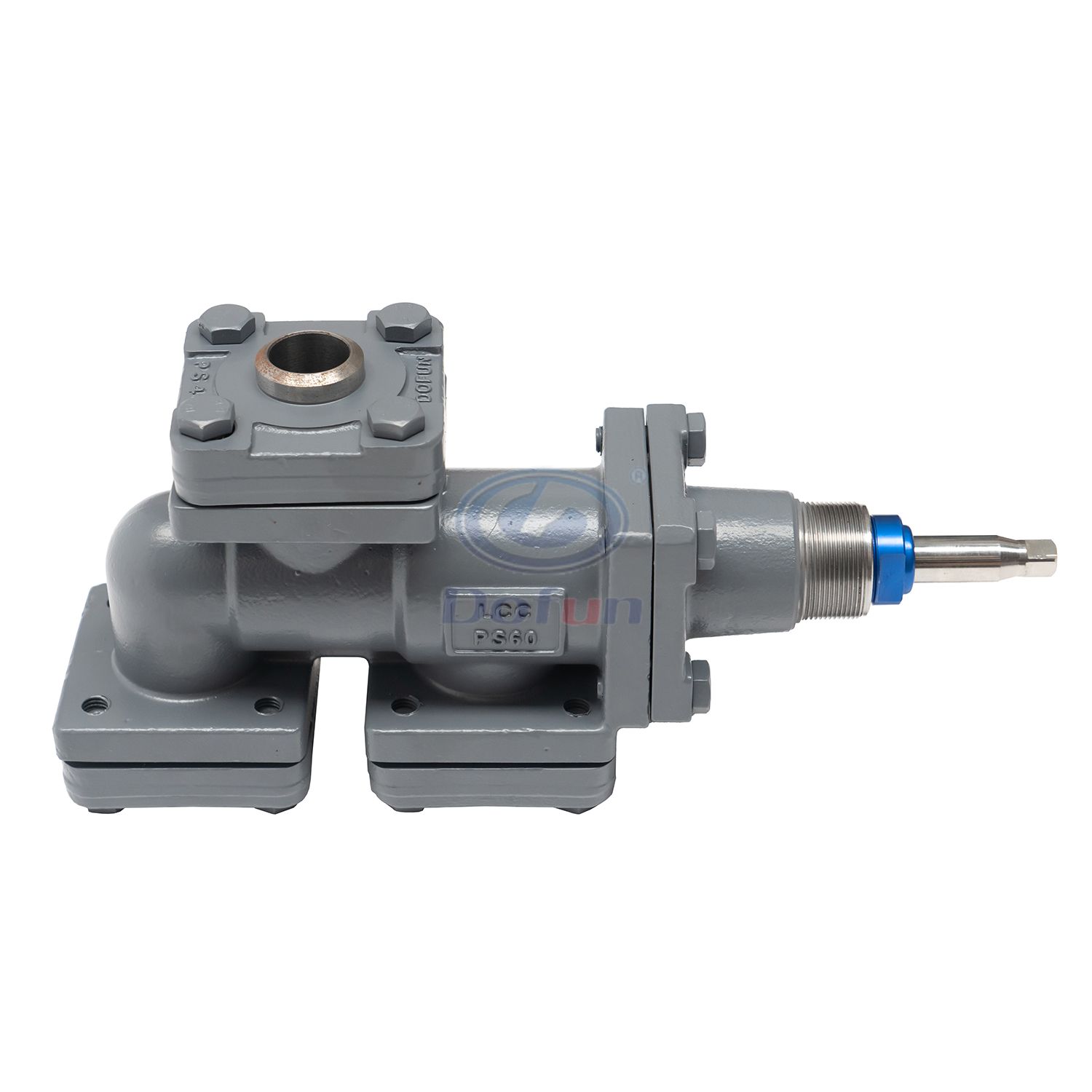

Double Stop Valve DSV2

DSV The double Stop Valve is mainly used to connect two safety valves, and the rotating stem can be switched between the two safety valves, which is convenient for maintenance.

Product Information

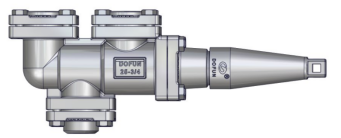

image.png     image.png

DSV1                                                                                               DSV2


Technical Parameter

Nominal Inlet Diameter:  DSV1   DN25

                       DSV2   DN20DN25DN32

Thread Of Outlet:  DSV1  NPT 3/4

           DSV2  NPT 3/4NPT 1 1/4

Nominal Pressure: 4.0MPa

Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717,CO2 and other refrigerants.

Applicable Temperature: -50 ℃ + 150 ℃


Type

M

D

DSV1-25

NPT3/4


DSV2-20

NPT3/4

26.9

DSV2-25

NPT3/4

33.7

DSV2-32

NPT3/4

42.4

DSV2-25

NPT 1 1/4

33.7

DSV2-32

NPT 1 1/4

42.4
