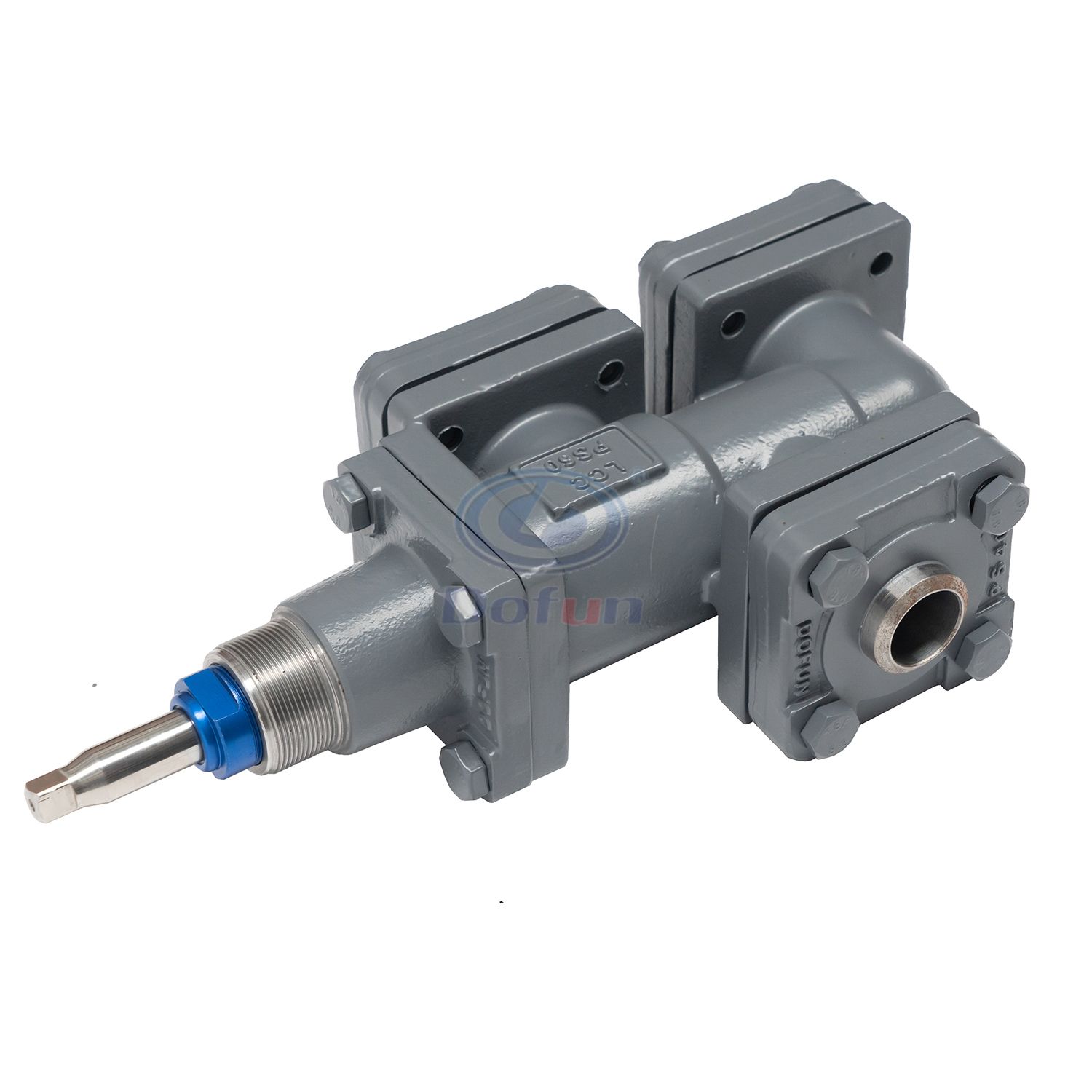

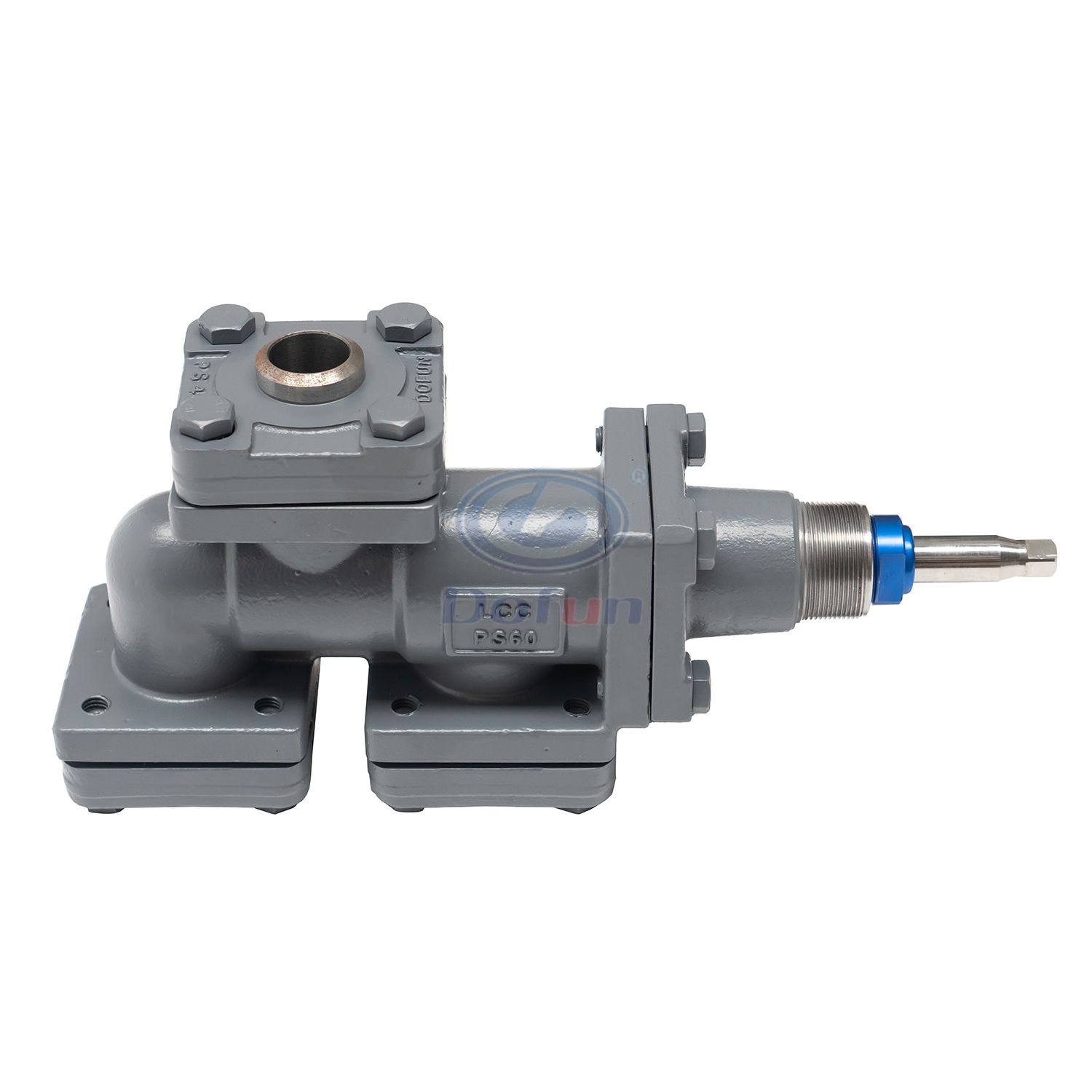

Double Stop Valve DSV1
DSV The double Stop Valve is mainly used to connect two safety valves, and the rotating stem can be switched between the two safety valves, which is convenient for maintenance.
Product Information
DSV1 DSV2
Technical Parameter
Nominal Inlet Diameter: DSV1 DN25
DSV2 DN20、DN25、DN32
Thread Of Outlet: DSV1 NPT 3/4
DSV2 NPT 3/4、NPT 1 1/4
Nominal Pressure: 4.0MPa
Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717,CO2 and other refrigerants.
Applicable Temperature: -50 ℃ ～ + 150 ℃

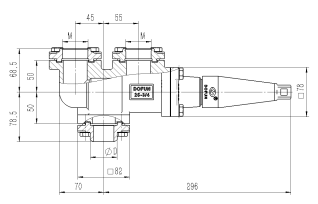

Type | M | D |
DSV1-25 | NPT3/4 | |
DSV2-20 | NPT3/4 | 26.9 |
DSV2-25 | NPT3/4 | 33.7 |
DSV2-32 | NPT3/4 | 42.4 |
DSV2-25 | NPT 1 1/4 | 33.7 |
DSV2-32 | NPT 1 1/4 | 42.4 |
