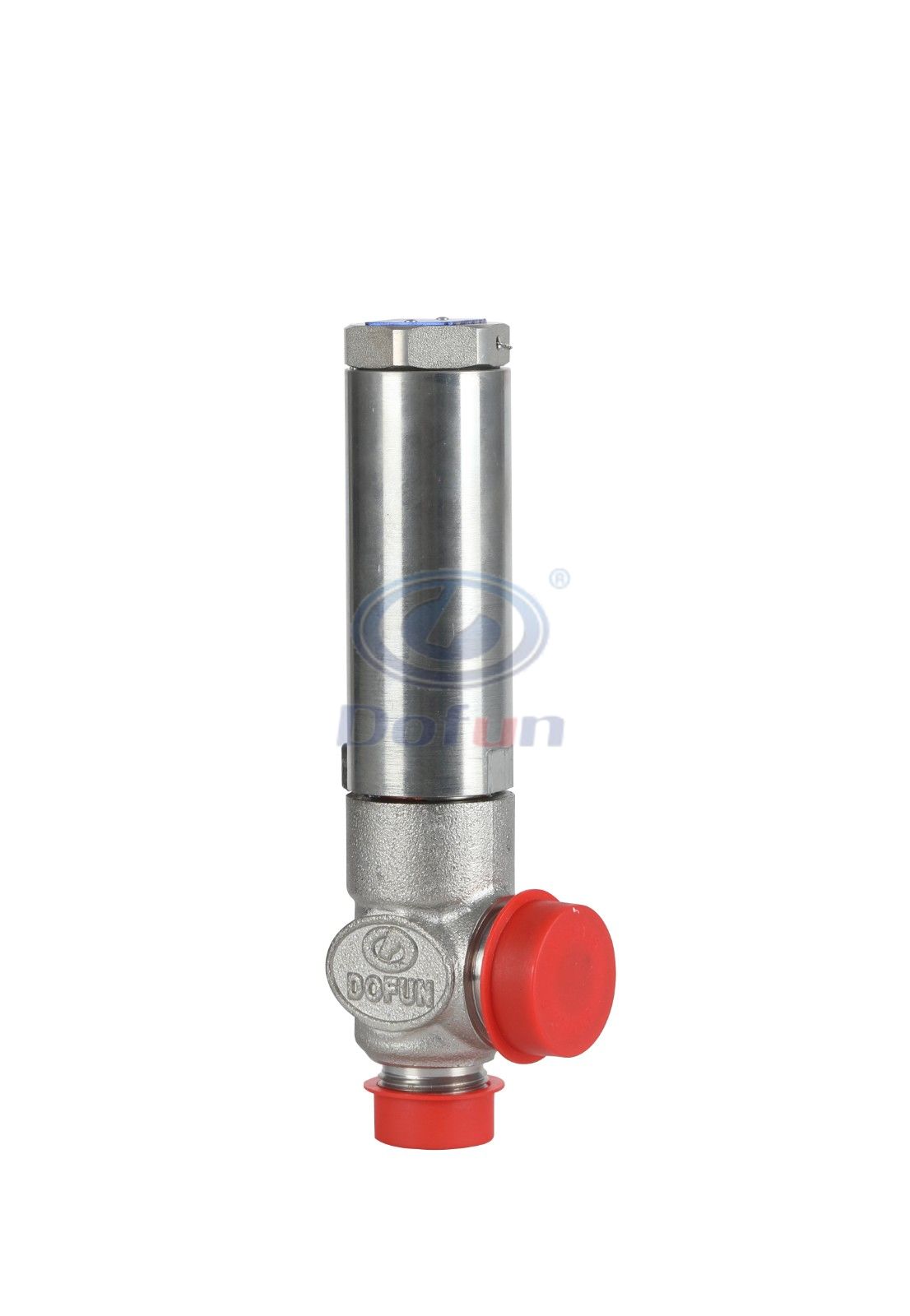

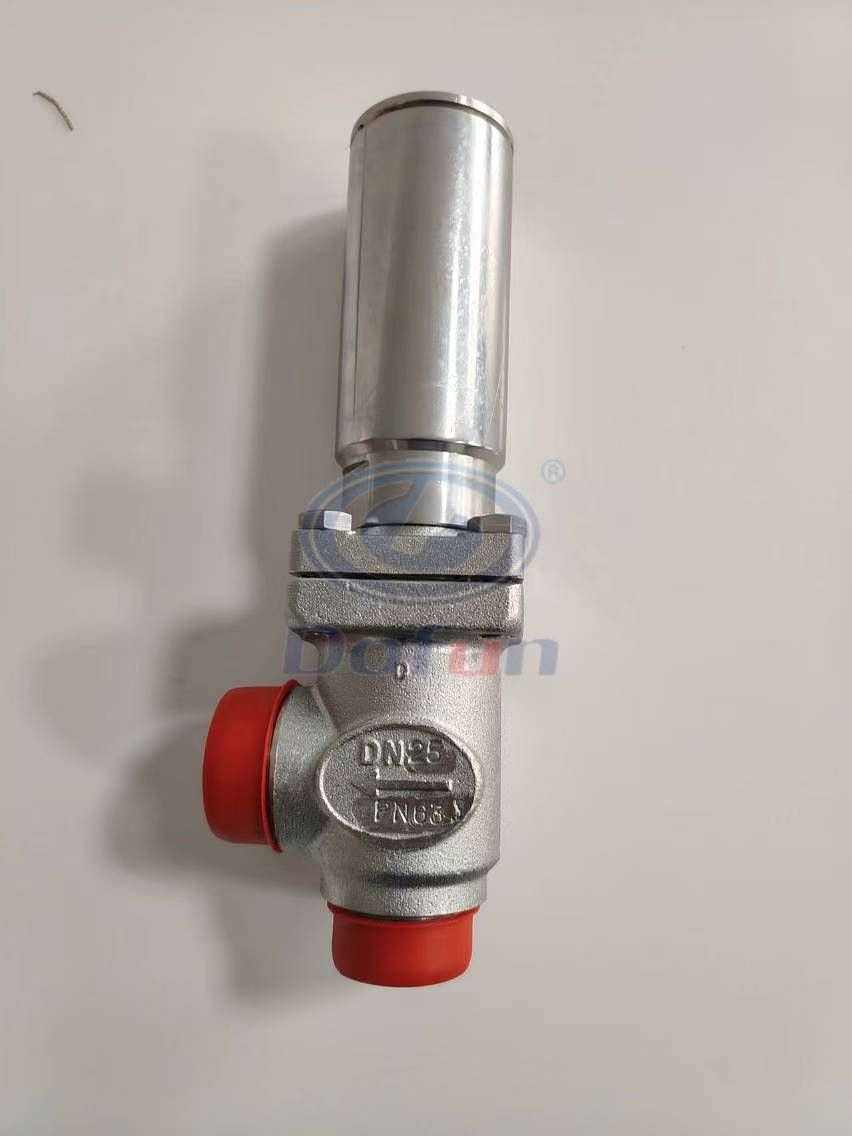

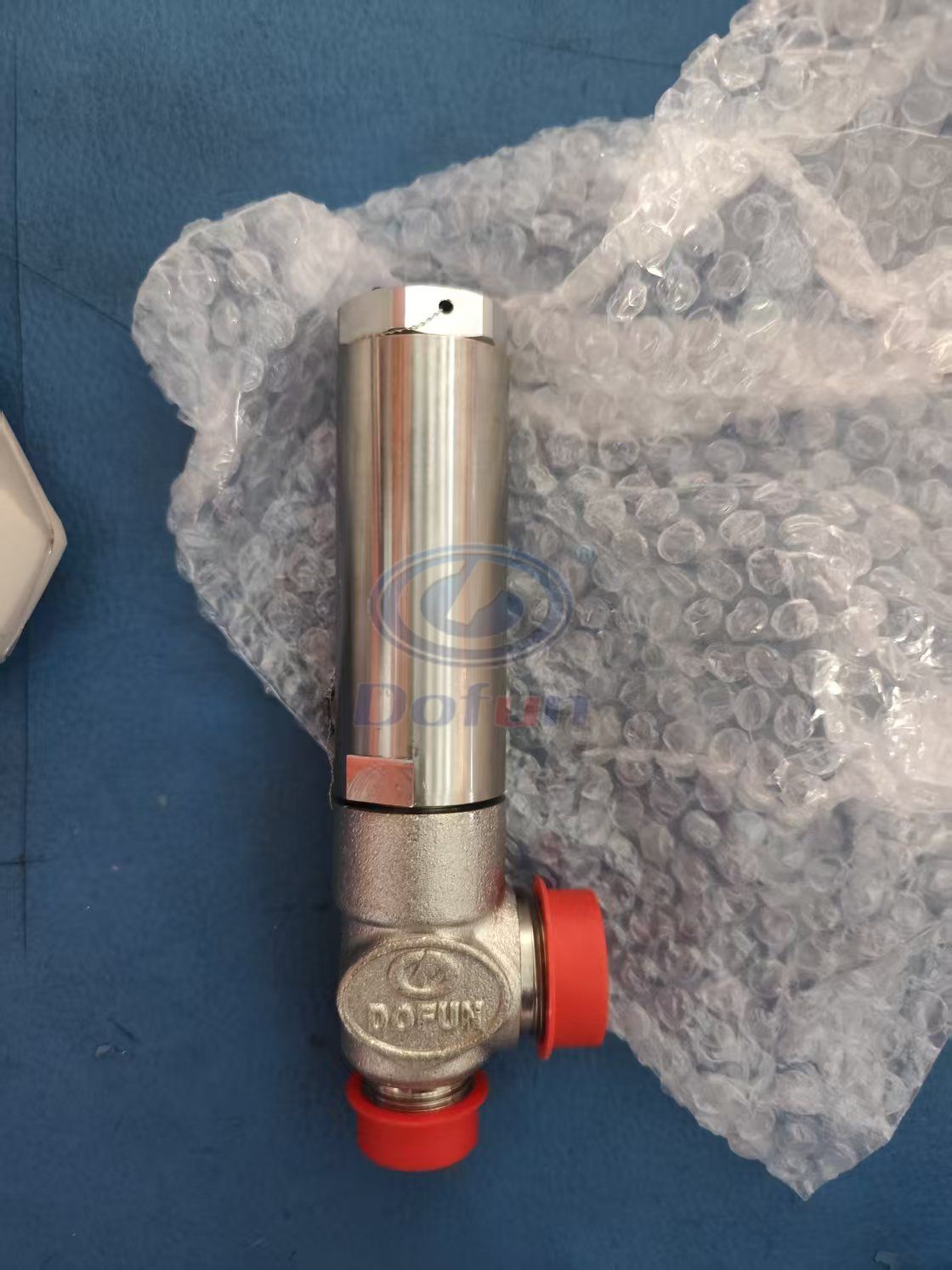

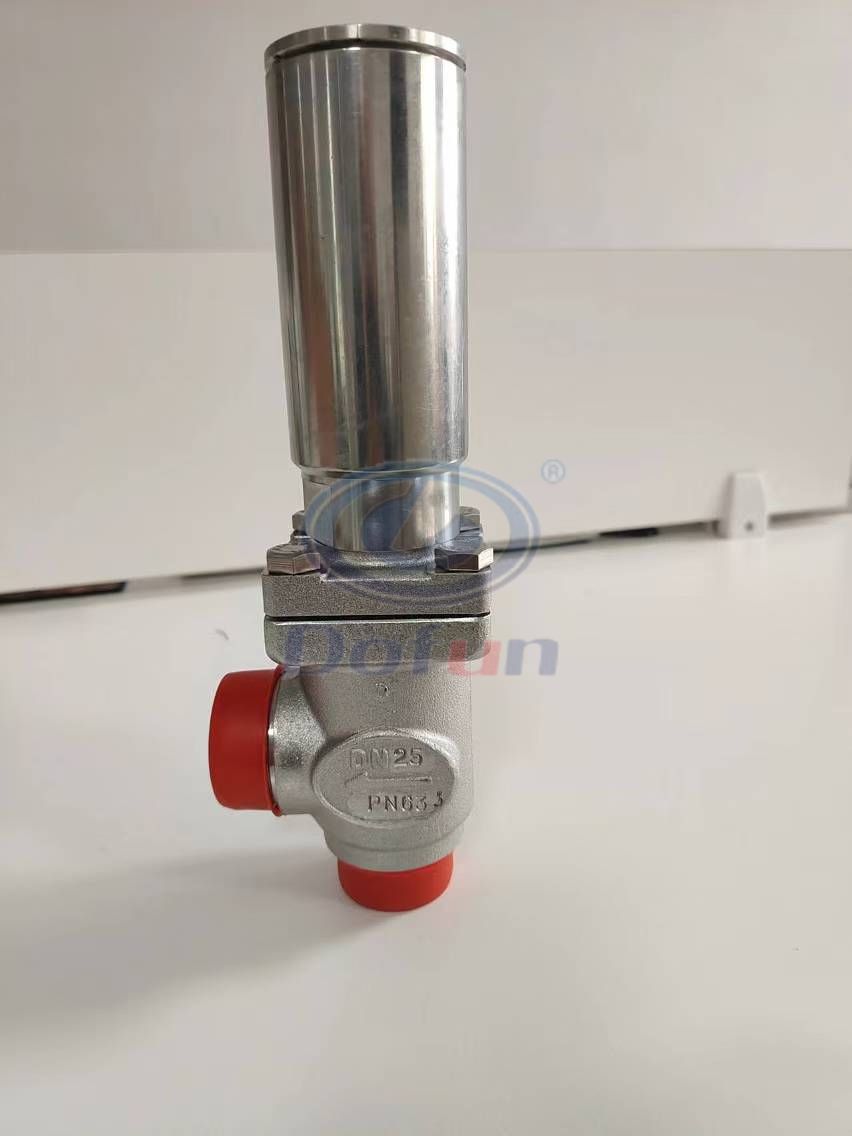

Refrigeration System Valve Safety Valve SRV1
The safety valve plays a role in safety protection in the system. When the system pressure exceeds the specified value, the safety valve opens, discharging a portion of the gas/fluid in the system into the atmosphere/outside the pipeline, ensuring that the system pressure does not exceed the allowable value and thus preventing accidents caused by excessive pressure in the system. In the refrigeration system, it is recommended that the working pressure be less than 15% of the set pressure of the SRV1 series safety valve to facilitate sealing. It is suitable for ammonia and fluorine. Refrigerants such as CO2 are not suitable for corrosive media, such as chlorine gas
Max P.N：6.3MPa
Pressure scope：10-27bar
Refrigerant：ammonia,CO2,Freon。
Adapter Temp.：-35℃～+100℃
Product Information
