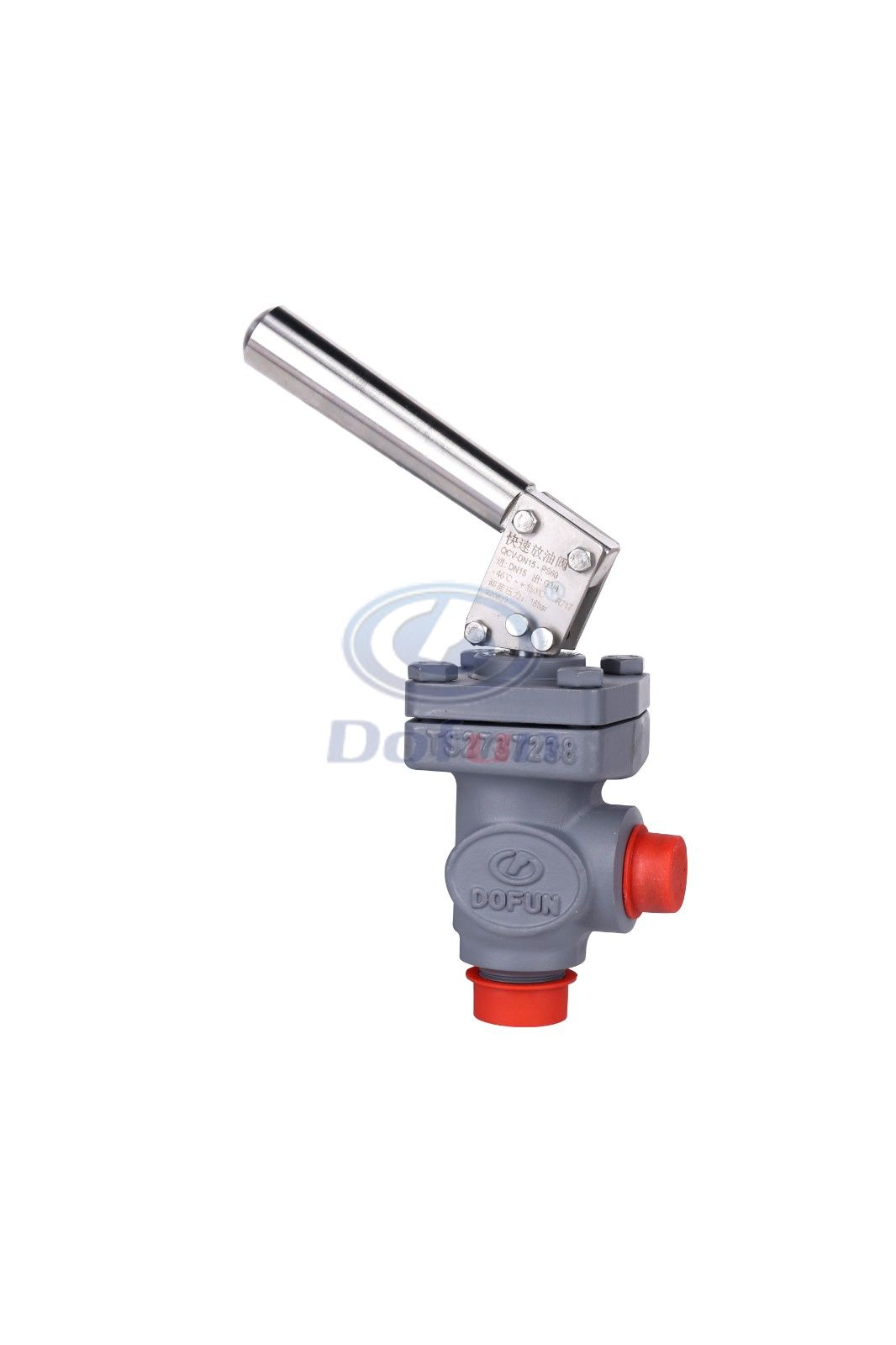

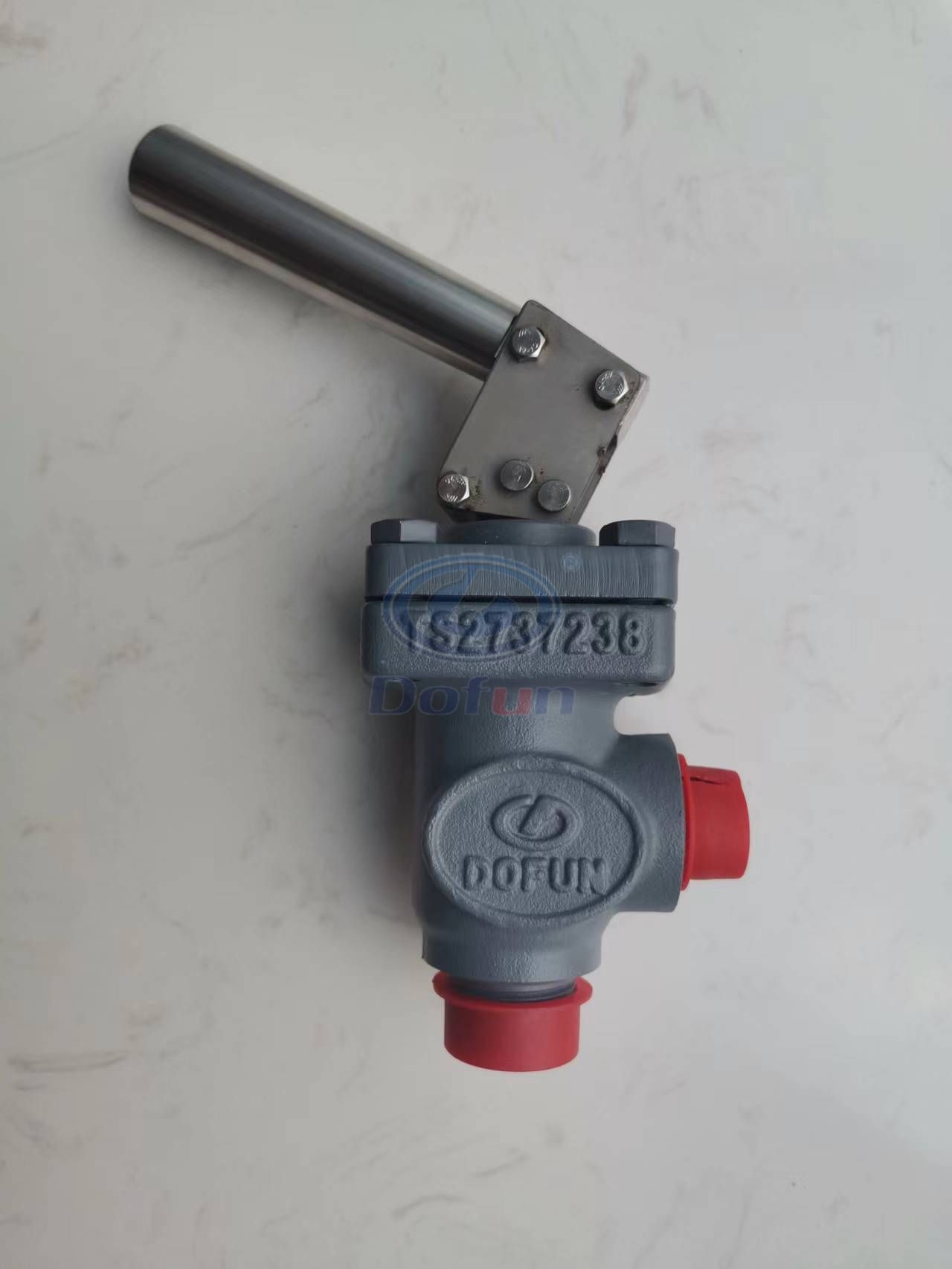

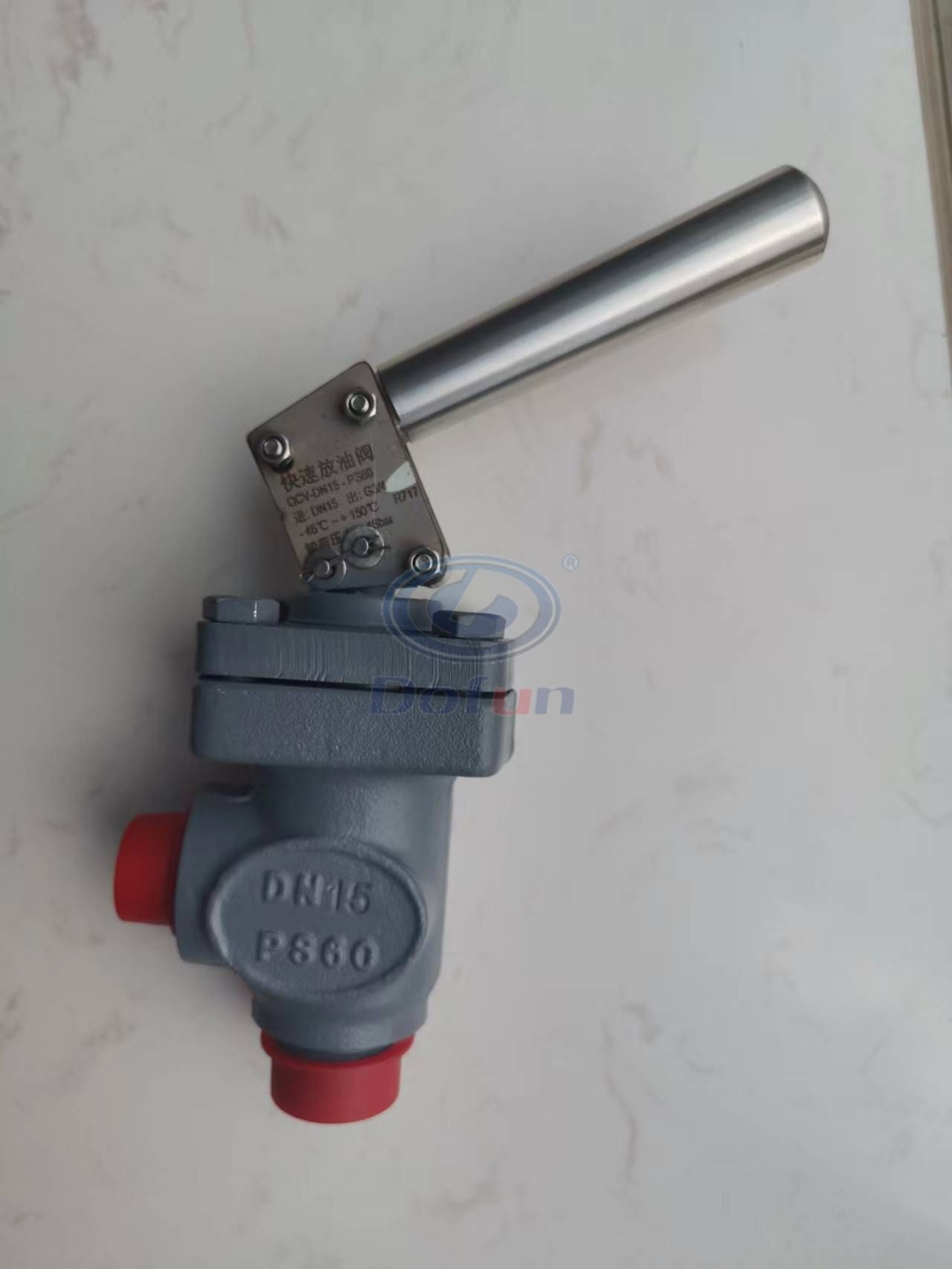

Oil Discharge Valve for Ammonia Refrigeration System Quick Discharge Valve
、技术参数Technical Parameter
◆ 公称通径：DN15
Nominal Diameter:DN15
◆ 公称压力：4.0MPa
Nominal Pressure:4.DMPa
◆ 适用介质：R717 制冷剂
Applicable Medium:R717 refrigerant
◆ 适用温度： -46℃~+150℃
Applicable Temperature:-46℃-+150℃
2、 说明 Instruction
QCV 快速放油阀是一种氨制冷系统排油用阀门，按下手柄，打开阀门， 松开手柄后阀门立刻关闭。
The QCV is used for oil discharge in ammonia refrigeration system.Press the handle to open the valve.The valve cioses immediately after the handle is released. QCV 快速放油阀需要在阀前配套截止阀一起安装到系统中。
The QCV quick drain valve needs to be installed in the system together with the stop valve in front of the valve.
3、订货Order Goods
◆ 默 认 DN15-G3/4 接 口
The default interface is DN15-G3/4 指定阀体连接尺寸
Please tell us the valve body connection Size you want when ordering
◆ 阀体的不同的连接结构
Different connection structures of the valve body
