Combination valve

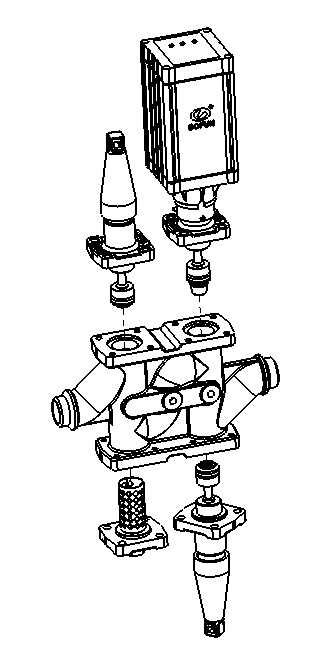

The NRVD series combination valve can be used in liquid supply, gas supply, liquid discharge, return air and other pipelines. Various modules are combined to form the required functions. Modular centralized installation greatly reduces the number of welding points in the pipeline and reduces leakage. Risk, it is recommended to install in a closed piping system, the side interface can be connected to pressure gauges, sight glasses, sensors.
Product Information
Applicable medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
Applicable temperature: -50 ℃ ~ + 150 ℃
Nominal diameter: DN15, DN20, DN25
Nominal pressure: 2.5MPa
P1 is a pre-defined installation stop valve, P2 port filter, P3 port is a function valve, P4 port stop valve and check valve in all four functional module ports of all combination valves. Refer to Table 1 for configuration.
常用配置方案Common configuration schemes | ||||
应用管路Applicat ion pipeline | P1 | P2 | P3 | P4 |
供液 Fluid supply | 手动截止阀Manual stop valve | 过滤器Filter | 电磁阀 Solenoid valve | 截止止回阀 Stop Check Valve |
供液 Fluid supply | 手动截止阀Manual stop valve | 过滤器Filter | 电动阀Electric Valve | 截止止回阀Stop Check Valve |
高压供液High-pressure liquid supply | 手动截止阀Manual stop valve | 过滤器Filter | 电动阀Electric Valve | 手动截止阀Manual Stop Valve |
热气融霜Hot air defrost | 手动截止阀Manual stop valve | 过滤器Filter | 电磁阀Solenoid valve | 手动截止阀Manual Stop Valve |
吸气调节Inhalation adjustment | 手动截止阀Manual stop valve | 过滤器Filter | 调节阀Control valve | 手动截止阀Manual Stop Valve |
回气调节Back Air Regulation | 手动截止阀 Manual stop valve | 过滤器Filter | 调节阀Control valve | 手动截止阀Manual Stop Valve |
泄压调节Pressure relief regulation | 手动截止阀Manual stop valve | 过滤器Filter | 调节阀Control valve | 截止止回阀 Stop Check Valve |
