Floating Switch

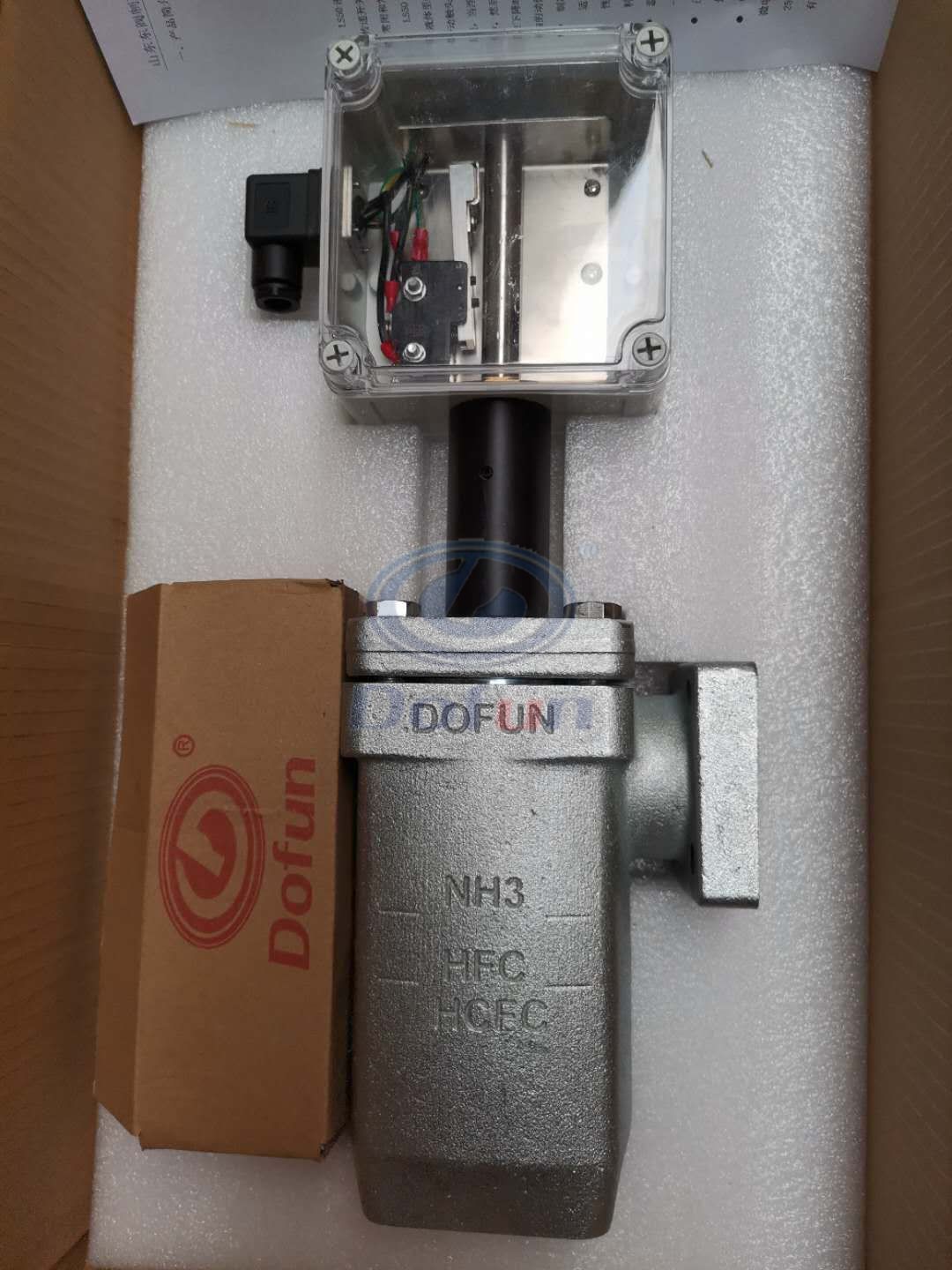

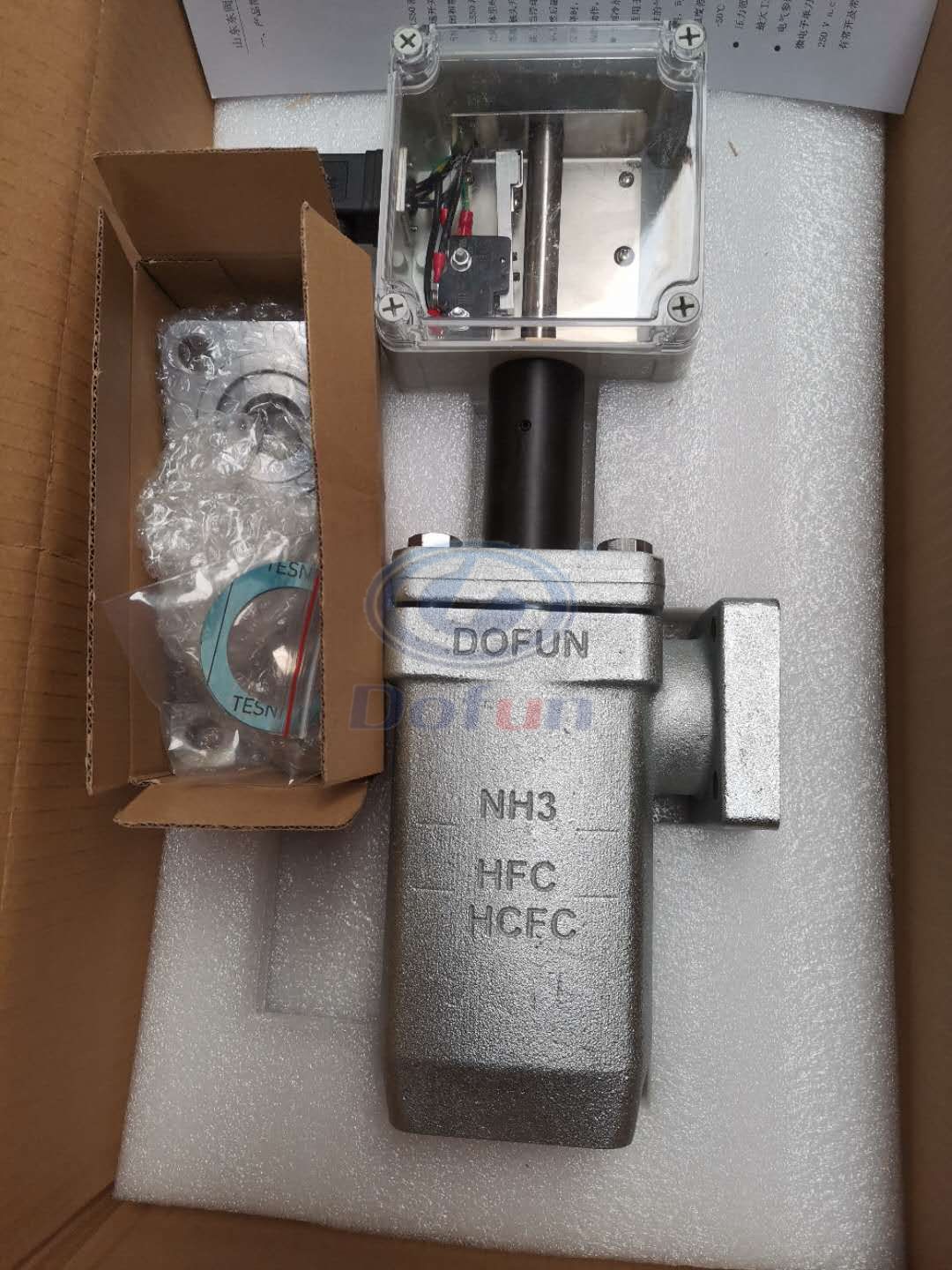

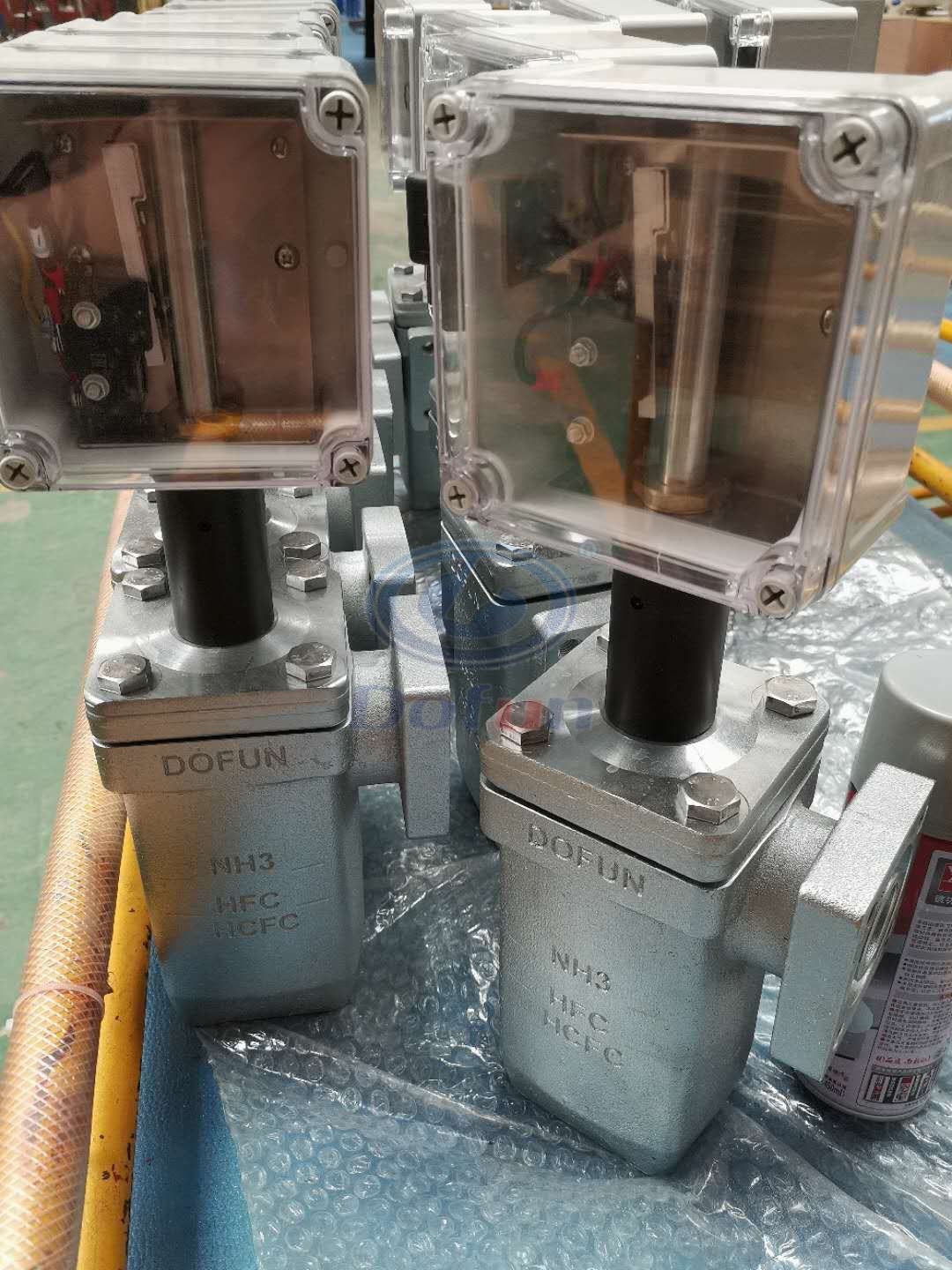

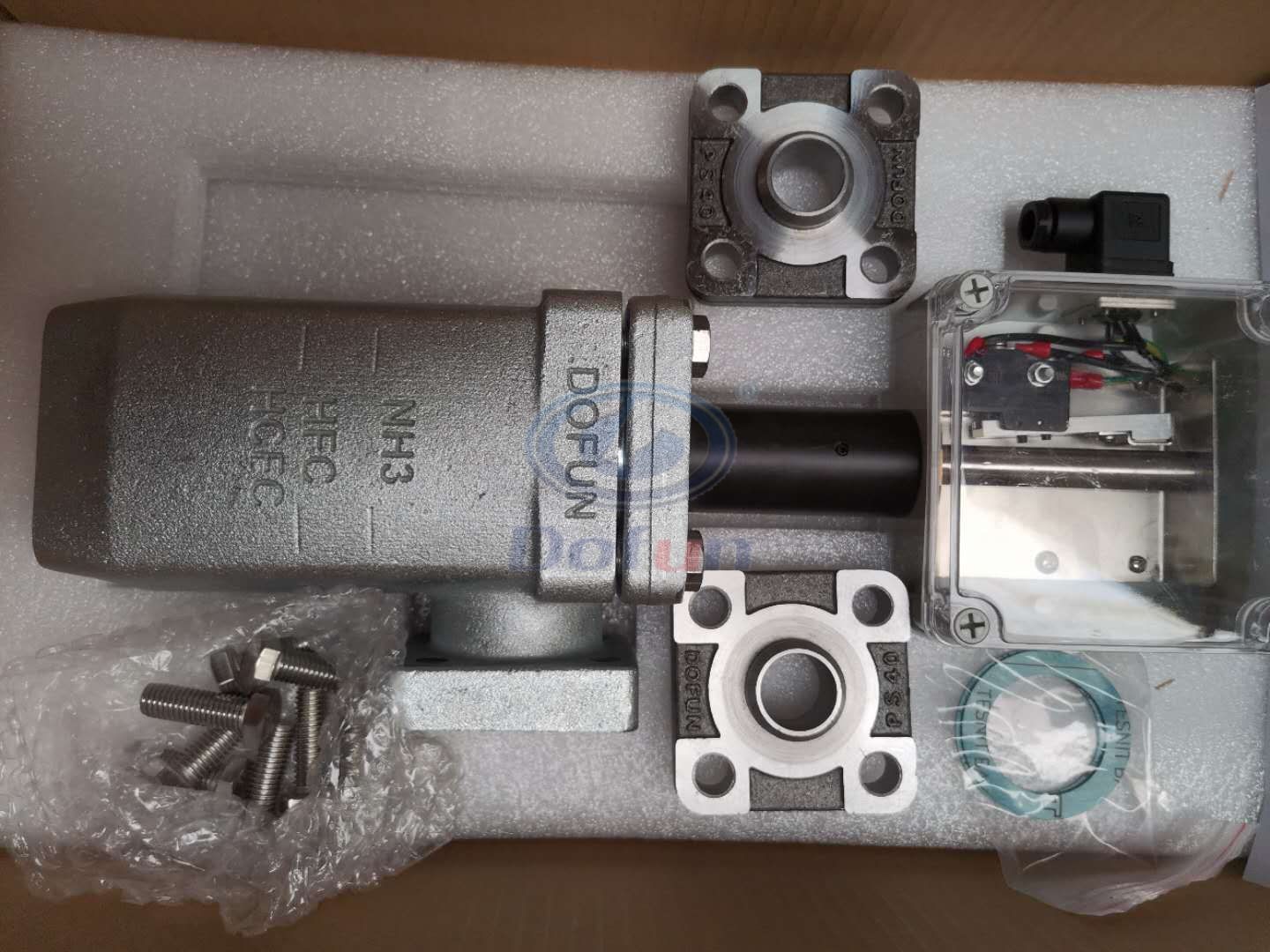

The LS50 Liquid Switch adopts a floating ball electromagnetic type, which transmits a switching signal according to the change of the liquid level to control the level of the liquid. The electromagnetic micro switch has two functions of normally closed and normally open.


Product Information

Applicable to various non-flammable refrigerants such as ammonia and non-corrosive gases and liquids, but pay attention to the use of corresponding sealing materials. Flammable hydrocarbons are not recommended.

Temperature Range -50℃ ~+65℃

Max.Working pressure :28 bar g

Microelectronic single pole double throw switch has two functions: normally open and normally closed

DIN standard junction box ,DIN43650 Cable Standard
