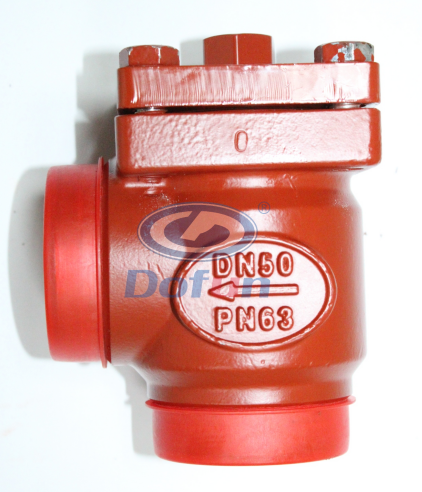

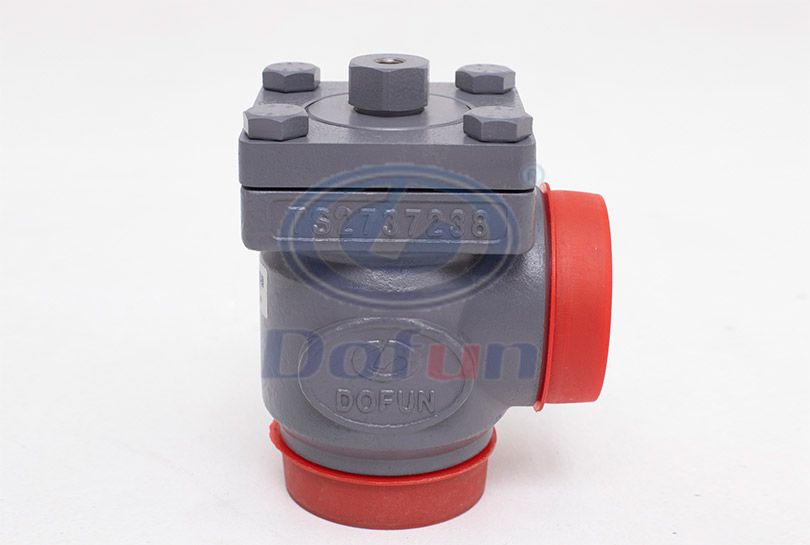

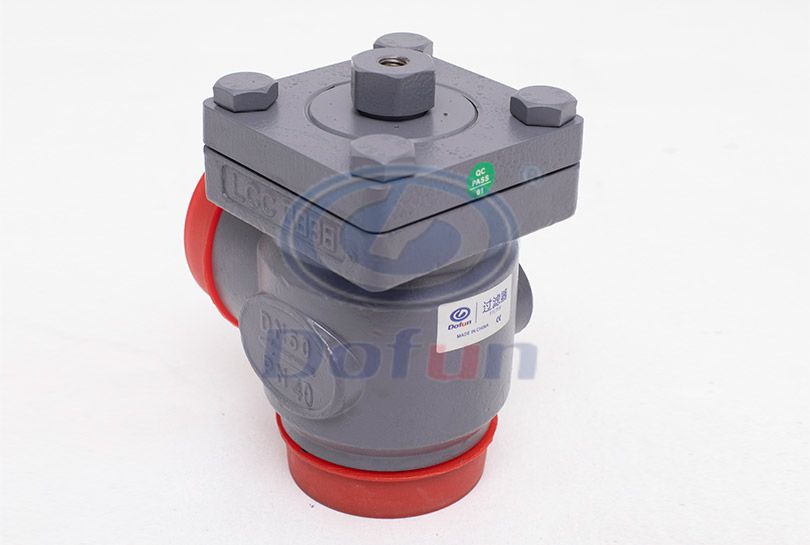

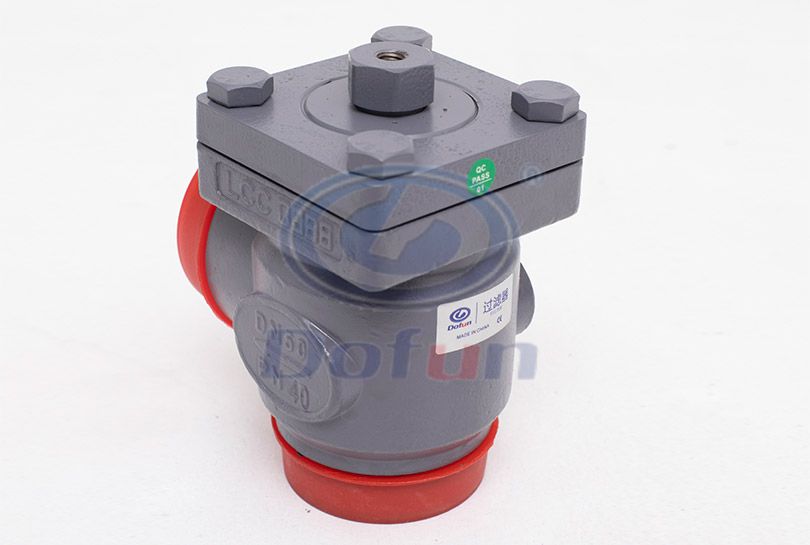

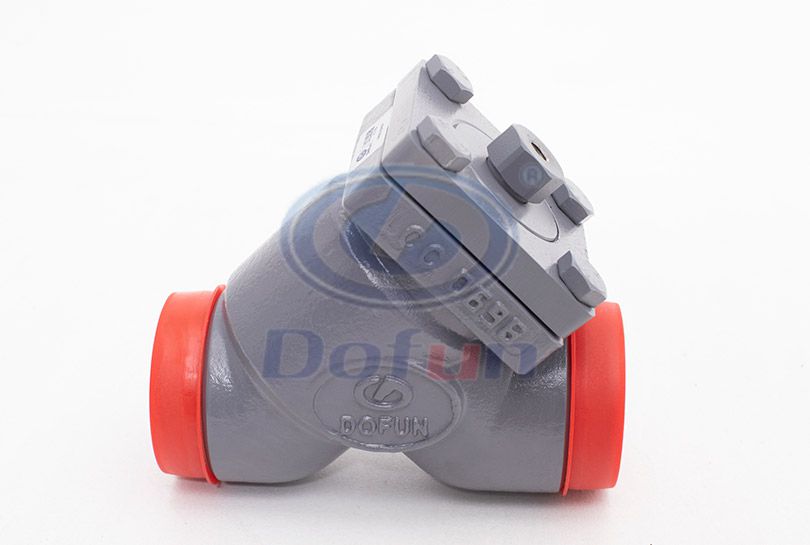

Filter Valve Angle Type
The Filter is installed in the front of the automatic controller, pump, compressor and other components. It is used in the first start up of the device and in various pipelines that need to continuously filter the refrigerant. Filters reduce the risk of system failure while reducing component wear.
Product Information
Angel Type
Filter PS60 Series:
Technical Parameter
Nominal Diameter: DN15-DN200
Nominal Pressure: 4.0 MPa
Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
Applicable Temperature: -46 ℃ ~ + 150 ℃
Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B
The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline.
Filter Angle Type | |||||
Type | Nominal Diameter(DN) | Size(mm) | |||
H1 | H2 | L | H | ||
FVD-A | 15 | 115.5 | 115.5 | 45 | 120 |
20 | 115.5 | 115.5 | 45 | 120 | |
25 | 115.5 | 119.5 | 45 | 120 | |
32 | 141.5 | 147.5 | 49.5 | 156 | |
40 | 141.5 | 147.5 | 56 | 156 | |
50 | 130 | 135 | 60 | 162 | |
65 | 148 | / | 70 | / | |
80 | 224 | / | 106 | / | |
100 | 253 | / | 121 | / | |
125 | 273.5 | / | 133 | / | |
150 | 311 | / | 146 | / | |
200 | 380.5 | / | 180 | / |
Filter PN63 Series:
Technical Parameter
Nominal Diameter: DN15-DN200
Nominal Pressure: 6.3 MPa
Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
Applicable Temperature: -46 ℃ ~ + 150 ℃
Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B
The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline.
Filter Angle Type | |||||
Type | Nominal Diameter(DN) | Size(mm) | |||
H1 | H2 | L | H | ||
FVD-HA | 15 | 115.5 | 115.5 | 45 | 120 |
20 | 115.5 | 115.5 | 45 | 120 | |
25 | 115.5 | 119.5 | 45 | 120 | |
32 | 141.5 | 147.5 | 49.5 | 156 | |
40 | 141.5 | 147.5 | 56 | 156 | |
50 | 130 | 135 | 60 | 162 | |
65 | 148 | / | 70 | / | |
80 | 224 | / | 106 | / | |
100 | 253 | / | 121 | / | |
125 | 273.5 | / | 133 | / | |
150 | 311 | / | 146 | / | |
200 | 380.5 | / | 180 | / |
