Cartridge Filter CFVD Series
CFVD filters are used in front of Solenoid Valves,pressure regulating valve and other automatic Control Valves or equipment to prevent the wear of valves and equipment by impurities.
Product Information
Technical Parameter
Nominal Diameter: DN32-DN125
Nominal Pressure: 3.5MPa
Applicable Medium: Ammonia,Fluorine and other refrigerants.
Applicable Temperature: -46 ℃ ～ + 150 ℃
The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline.

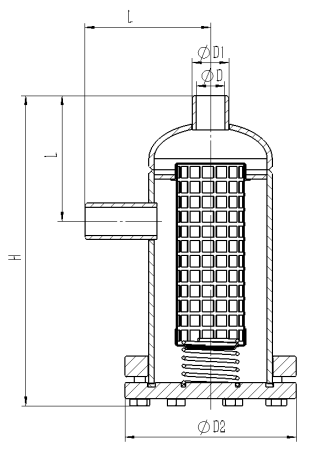

Strainer artridge Filter(Model 100):
| Type | Model | No.of cores | Butt Weiding | Dimensions | |||||
| (inch) | (mm) | A | B | C | D | E | |||
| CFVD | DCA-10011 | 1 | 1-3/8 | Φ41×3 | 296 | 204 | 116 | 152 | 196 |
| DCA-10013 | 1 | 1-5/8 | Φ48×3 | 296 | 200 | 116 | |||
| DCA-10017 | 1 | 2-1/8 | Φ61×3.5 | 305 | 203 | 126 | |||
| DCA-10021 | 1 | 2-5/8 | Φ74×3.5 | 313 | 206 | 136 | |||
| DCA-10025 | 1 | 3-1/8 | Φ88×4 | 310 | 194 | 136 | |||
| DCA-10034 | 1 | 3-7/8 | Φ107×4 | 308 | 180 | 136 | |||
| DCA-10042 | 1 | 4-7/8 | Φ132×4 | 316 | 179 | 136 | |||
| Type | Model | No.of cores | ODS Iterface Copper Pipe | Butt Welded Steel Pipe | Dimensions | ||||
| (inch) | (mm) | A | B | C | D | E | |||
| CFVD | DCA-48485 | 1 | 5/8--16/19 | 232 | 151 | 79 | 114 | 153 | |
| DCA-48487 | 1 | 7/8--22/25 | 238 | 157 | 84 | ||||
| DCA-48489 | 1 | 1-1/8--29/32 | Φ32×3 | 243 | 162 | 89 | |||
| DCA-4811 | 1 | 1-3/8--35/38 | Φ41×Φ35 | 243 | 162 | 89 | |||
| DCA-4813 | 1 | 1-5/8--42/45 | Φ48×Φ42 | 248 | 157 | 94 | |||
| DCA-4817 | 1 | 2-1/8--54/58 | Φ61×Φ54 | 252 | 161 | 94 | |||
| DCA-4821 | 1 | Φ74×Φ67 | 259 | 163 | 117 | ||||
| DCA-4825 | 1 | Φ88×Φ80 | 253 | 147 | 117 | ||||
