Motor Valve

Home >> Products >> Motor Valve

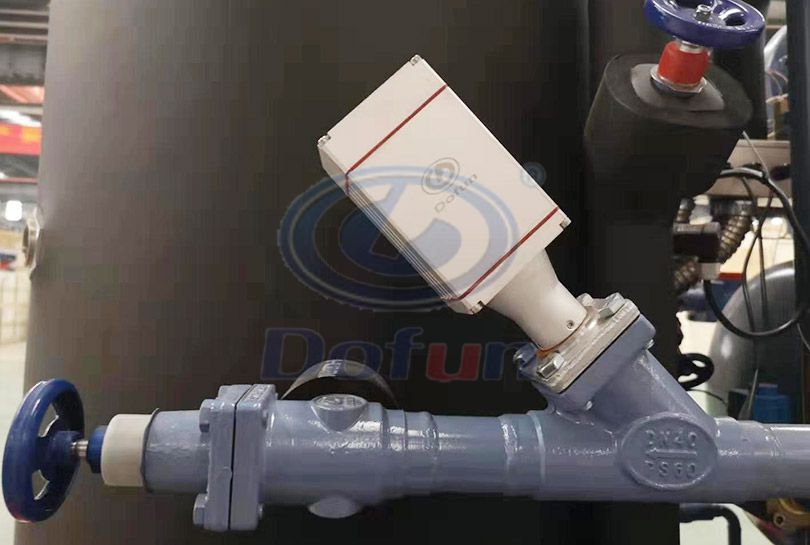

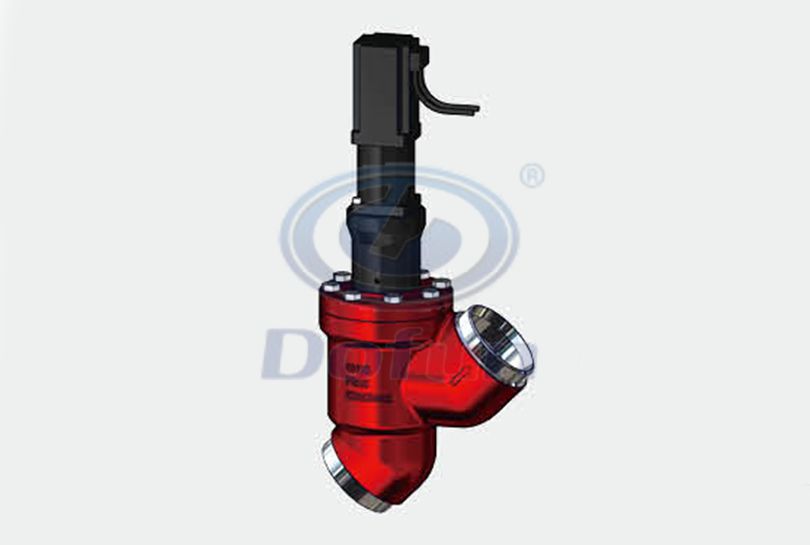

Motor Valve Straight Type

Motor Valve MVD Series used for Control Valves in industrial refrigeration pipelines easy to realize automatic control.The valve body and all parts are made of low temperature materials, suitable for common non-flammable refrigerants, including ammonia, fluorine, etc .The electric valve consists of electric actuator, operation panel and modular main valve, etc. It is recommended to install a filter before the electric valve.



Product Information


Straight Type


Technical Parameter

Analog Signal 0-10V, 4-20mA, PLC bus control mode;

Modular design, easy to install, maintain and repair;

Grade 5 outer seal structure ensures zero leakage;

Temperature Range: -50 ℃ ~ + 150 ℃

Power Supply Voltage: 24V

Nominal Diameter: DN20-DN125

Nominal Pressure: 4.0MPa

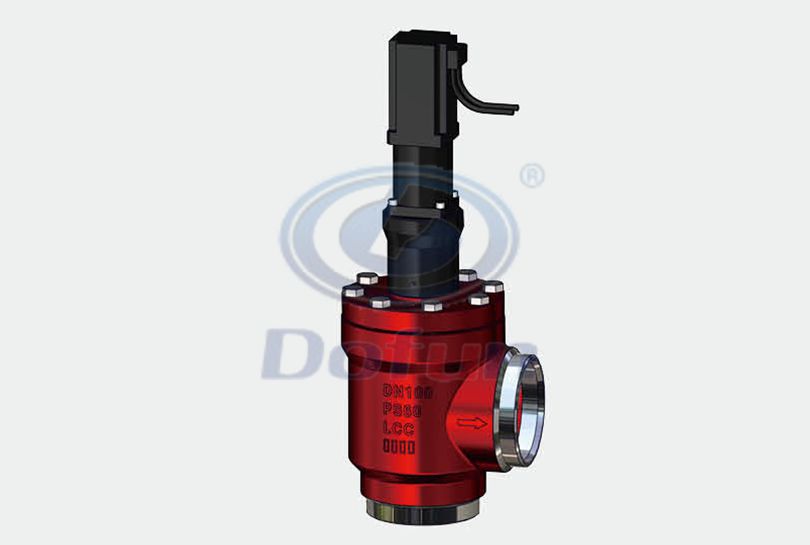

Structure Form: Angle Type Structure’s code is A        Straight Type Structure’s code is B

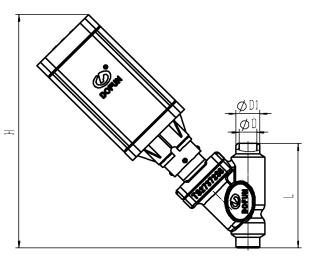

Motor Valve Straight Type

Type

Nominal Diameter

(DN)

Sizemm

ΦD1-GB

ΦD1-DIN

ΦD

L

H

DFMV-S

15

22

21.3

15

120

268

20

27

27

20

120

268

25

32

33.7

25

120

268

32

38

42.4

32

156

335

40

45

48.3

38

156

335

50

57

60.3

49

149

352

65

76

76

62

176

352

80

89

89

76

216

395

100

108

114

96

264

423

125

133

139.7

120

320

443
