Motor Valve

Home >> Products >> Motor Valve

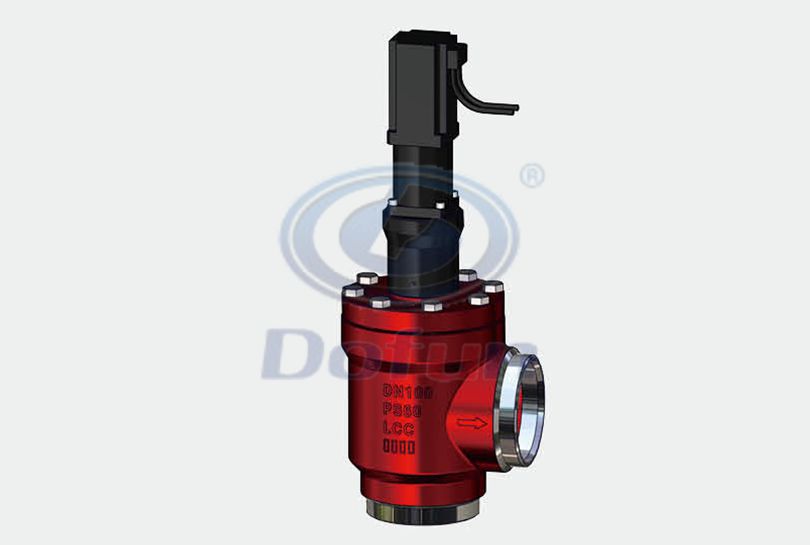

Motor Valve Angle Type

Motor Valve MVD Series used for Control Valves in industrial refrigeration pipelines easy to realize automatic control.The valve body and all parts are made of low temperature materials, suitable for common non-flammable refrigerants, including ammonia, fluorine, etc .The electric valve consists of electric actuator, operation panel and modular main valve, etc. It is recommended to install a filter before the electric valve.


Product Information



Angle Type


Technical Parameter

Analog Signal 0-10V, 4-20mA, PLC bus control mode;

Modular design, easy to install, maintain and repair;

Grade 5 outer seal structure ensures zero leakage;

Temperature Range: -50 ℃ ~ + 150 ℃

Power Supply Voltage: 24V

Nominal Diameter: DN20-DN125

Nominal Pressure: 4.0MPa

Structure Form: Angle Type Structure’s code is A      Straight Type Structure’s code is B

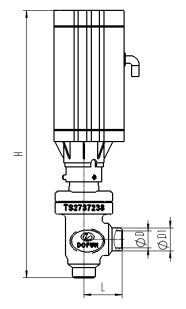

Motor Valve Angle Type

Type

Nominal Diameter

(DN)

Sizemm

ΦD1-GB

ΦD1-DIN

ΦD

L

H

DFMV-A

15

22

21.3

15

120

268

20

27

27

20

45

315

25

32

33.7

25

45

315

32

38

42.4

32

56

368

40

45

48.3

38

56

368

50

57

60.3

49

60

390

65

76

76

62

90

390

80

89

89

76

106

430

100

108

114

96

121

468

125

133

139.7

120

133

495
